Why Upgrade Your Marine Transducer

A transducer sends and receives sonar signals underwater, forming the foundation of your depth sounder and fish finder.

Upgrading your marine transducer delivers clearer sonar images, more accurate depth data, and better target separation.

Many boat owners run transducers from 10-15 years ago, unaware that modern CHIRP sonar and higher power outputs have fundamentally changed what's possible underwater.

This guide walks you through upgrading marine transducers for better depth readings, from understanding the specs that matter, to compatibility checks, to installation and troubleshooting.

Understanding Transducer Specs That Affect Depth Performance

Operating Frequency and Depth Range

Operating frequency determines depth range and image detail. Lower frequencies penetrate deeper with less detail; higher frequencies show fine detail but don't reach as far down.

Frequencies split into three bands:

• Low frequency (50 kHz or below): Reaches 2,000+ feet. Best for deep water and offshore fishing. Poor target separation in shallow water.
• Mid frequency (80-165 kHz): Reaches 1,200-1,900 feet depending on saltwater or freshwater. Works well for most recreational boats. Balances depth and detail.
• High frequency (150-250 kHz): Reaches 300-400 feet. Excellent detail for shallow water, structure, and baitfish. Useless in deep water.

The Garmin GT15M-THF operates at 85-165 kHz mid-band CHIRP, reaching 1,200 feet in saltwater and 1,900 feet in freshwater, adequate for most recreational fishing. For deep structure or offshore fishing, the Garmin GT17M-THF with 1 kW power reaches 2,400 feet in freshwater.

CHIRP sonar sweeps across a frequency range in each ping, producing cleaner fish arches and better bottom definition than traditional single-frequency sonar.

Transducer Power Output and Maximum Depth

Power output measured in watts controls signal strength and depth penetration. Higher wattage pushes the signal deeper and through noise.

Common power levels:

Power Output	Best For	Maximum Depth (Freshwater)
400-600W	Inland lakes, rivers	1,500-1,900 ft
600-1,000W	Larger lakes, coastal	1,800-2,200 ft
1,000W+	Deep offshore, saltwater	2,400+ ft

The Garmin GT15M-THF delivers 600 watts and reaches 1,900 feet in freshwater, adequate for most recreational boats. The 1 kW Garmin GT17M-THF reaches 2,400 feet in freshwater and maintains signal strength in saltwater where signal loss is greater.

Power alone doesn't guarantee depth. A weak transducer in muddy water won't reach as far as the same transducer in clear saltwater. But higher power always gives you a better chance.

Cone Angle and Target Separation

Cone angle is the width of the sonar beam spreading downward from the transducer. Narrow cones (9-12 degrees) show high detail but cover a small area. Wide cones (20-30 degrees) cover more bottom but sacrifice detail.

The Airmar B75HW high-frequency transducer uses a 30-degree wide beam for finding baitfish schools. The Garmin GT15M-THF mid-band uses a 24-16 degree variable beam, balancing coverage with detail.

For fishing, narrower is usually better. For navigation and general depth awareness, wider coverage saves time scanning for structure.

Marine Transducer Compatibility Checks Before You Buy

Verify Sonar Module and Chartplotter Support

Your new transducer must work with your existing sonar module or chartplotter. Incompatibility is the most common installation failure.

Before buying, check: (1) Connector type, most modern Garmin transducers use 8-pin or 12-pin connectors; verify your sonar module matches. (2) Frequency support, your sonar module must recognize the transducer's frequency band. (3) Auto-ID compatibility, Garmin's Auto-ID technology automatically configures the sonar to the transducer; older Garmin units may not support it.

Check your sonar manual or call the manufacturer before ordering to avoid compatibility issues.

Connector Type and Cable Length

Cable length and connector type determine whether the transducer physically reaches your sonar module.

Most through-hull transducers come with 25-50 foot cables. The Garmin GT15M-THF includes a 50-foot cable. Most transom-mount transducers come with 25-foot cables, adequate for smaller boats.

An 8-pin connector won't fit a 12-pin sonar module. Check your module's connector type before ordering.

Don't splice cables to extend reach; this introduces corrosion and signal loss. Buy the transducer with the longer cable option if needed.

Boat Transducer Installation: Mounting and Placement

Transom Mount vs. Through-Hull Installation

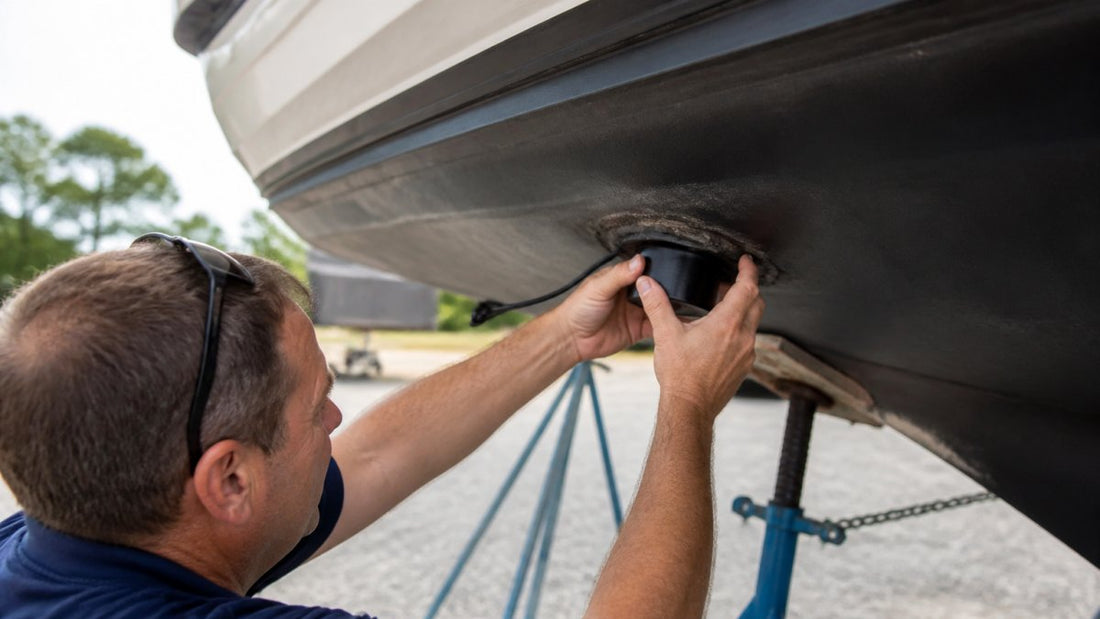

Transom-mount transducers bolt to the outside of your boat's transom. Through-hull transducers mount flush inside the hull. Each has trade-offs.

Transom Mount:

• Easiest to install, no drilling
• Removable for storage or repair
• Susceptible to turbulence at speed
• Works on any hull material
• Signal degrades in rough water

Through-Hull:

• Minimal drag and turbulence
• Cleaner sonar at high speed
• Permanent installation
• Requires drilling the hull
• Better performance offshore

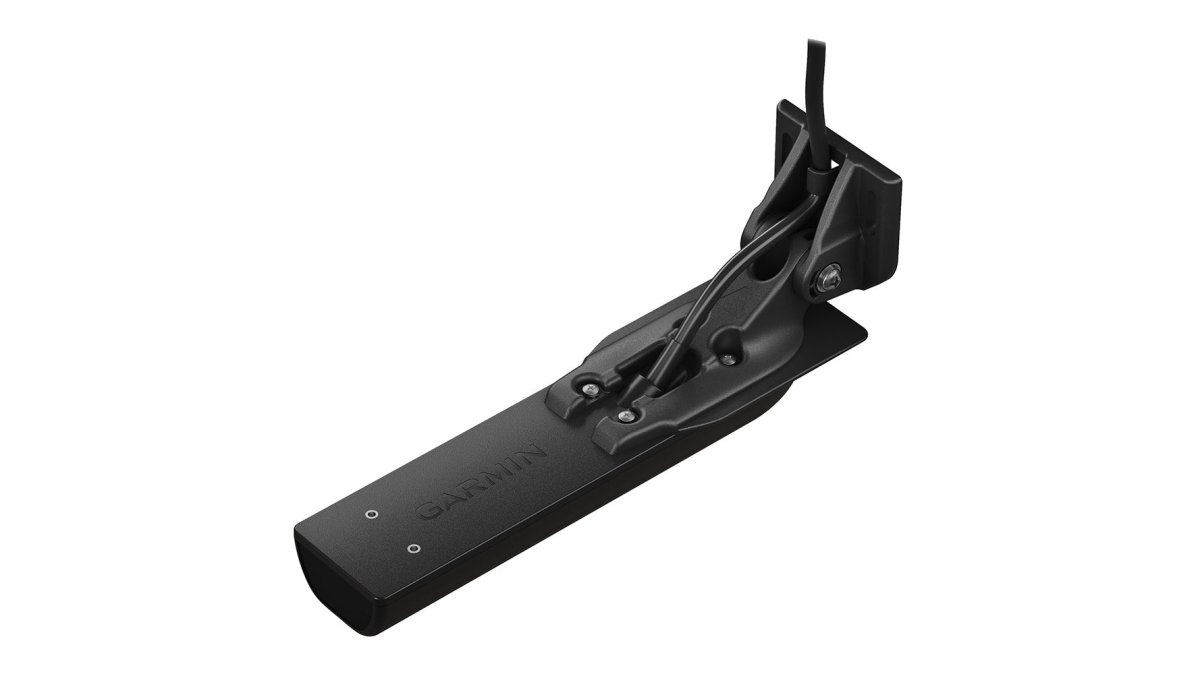

The Garmin GT56UHD-TM is a transom-mount option with both transom and trolling motor mounts. Installation takes 30 minutes with no drilling required, making it practical for weekend boaters and smaller vessels.

For larger boats, cruisers, or offshore fishing, through-hull installation pays dividends. The Garmin GT15M-THF and GT17M-THF are through-hull designs. They sit flush with the hull, reducing drag and maintaining signal quality at speed.

Hull Material and Tilt Angle Considerations

Your hull material and deadrise angle (the angle of the hull bottom) determine which transducer tilt version you need.

Garmin GT17M-THF SS Mid Band Chirp Transducer - 20 - 1kW - 8-Pin [010-02930-02] →

Fiberglass, composite, and aluminum hulls mount the transducer perpendicular to the water surface.

Boats with flat bottoms (0-5 degrees deadrise) need transducers tilted 0 degrees.

The Garmin GT15M-THF comes in 20-degree tilt versions for typical deadrise angles 16-20 degrees. The Garmin GT17M-THF offers multiple tilt versions to 24 degrees.

Fairing blocks are wedges that adjust tilt without buying multiple transducer versions. Most through-hull transducers accommodate fairing blocks up to 5 degrees.

Avoiding Turbulence and Positioning for Signal Quality

Transducer placement on the hull determines sonar quality. Turbulence from the hull, prop wash, and water movement degrades signal.

Best placement: centerline or slightly off-center to avoid prop wash, behind running strakes to reduce bubbles, at least 2 feet from the prop, below the waterline at rest, and away from through-hull fittings.

Transom-mount transducers suffer most from turbulence at speed. Mounting 12-18 inches below the waterline and slightly inboard reduces bubble interference. Through-hull transducers are less sensitive to placement because they're protected inside the hull.

Transducer Not Reading Depth: Troubleshooting Steps

Check Power and Cable Connections

No depth reading usually means power isn't reaching the transducer or the cable is loose.

Verify the sonar unit is powered on, check the transducer cable connection at both ends, inspect the cable for damage or corrosion, and trace it for sharp bends or pinches.

A corroded connector is a common failure point in saltwater boats. If the connector looks green or white, clean both sides with a dry cloth and reconnect firmly.

If power and connections are solid, move to software checks.

Verify Sonar Software Settings and Auto-ID

Modern Garmin chartplotters run firmware that must recognize your transducer. If the software doesn't identify it, it won't display depth.

If auto-ID failed, manually select your transducer model from the sonar module's menu. Consult your chartplotter manual for the exact steps, they vary by model year.

After updating settings, power off the sonar module, wait 30 seconds, and power back on. The transducer should now display depth.

Test for Installation and Water Interference Issues

If power, connections, and software are correct but depth readings are still erratic, the transducer may be installed incorrectly or picking up interference.

Test in water 20-30 feet deep where you know the bottom. Depth readings should stabilize within 2-3 feet of actual depth. Wild readings indicate noise or incomplete submersion.

If readings stabilize in shallow water but degrade in deep water, the transducer is working correctly. Deeper water naturally produces weaker returns, and some signal loss is normal.

Best Transducer for Deep Water: Frequency and Power Selection

For deep-water fishing and offshore navigation, choose mid-band CHIRP (80-165 kHz) with 1,000+ watts, which reaches 2,000-2,400 feet and displays clear fish targets and bottom composition.

The Garmin GT17M-THF is the best choice for deep-water applications, delivering 1 kW across mid-band CHIRP (80-165 kHz), reaching 2,400 feet in freshwater and 1,800 feet in saltwater.

For boats fishing depths beyond 2,000 feet, low-frequency transducers paired with high-power sonar modules are necessary. These are specialized systems beyond the scope of most recreational boats.

Recommended Transducers and Installation Checklist

Charleston Yachting carries three transducers that cover all common recreational boating scenarios.

Transducer	Frequency	Best For	Price
Garmin GT56UHD-TM	Mid/High CHIRP	Transom mount, smaller boats, shallow/mid-depth	$599.99
Garmin GT15M-THF	Mid CHIRP	Through-hull, mid-size boats, balanced performance	$799.99
Garmin GT17M-THF	Mid CHIRP	Through-hull, large boats, deep water, offshore	$1,199.99

Each includes Auto-ID compatibility with modern Garmin chartplotters. Each is backed by Garmin's reputation for reliability in marine electronics.

Installation Checklist:

• Verify sonar module and chartplotter compatibility with transducer model
• Confirm connector type and cable length are correct
• Check hull material and deadrise angle match transducer tilt version
• Identify optimal mounting location (centerline, below waterline, away from turbulence)
• For through-hull: drill pilot hole, test fit, apply marine sealant before final installation
• For transom-mount: position transducer 12-18 inches below waterline, secure mounting bracket firmly
• Connect cable to sonar module, ensuring connector is tight and fully seated
• Power on sonar and verify Auto-ID recognizes the transducer
• In shallow water (20-30 feet), test depth readings for stability and accuracy
• If readings are erratic, check for turbulence, electrical noise, or incorrect tilt angle
• Calibrate sonar software to your transducer's frequency and power settings

Frequently Asked Questions

Why would I upgrade my transducer if my current fish finder is still working?

Older transducers often lack CHIRP sonar technology, which delivers sharper target definition and better bottom tracking than traditional sonar. Upgrading improves depth accuracy, especially at speed or in shallow water. Newer transducers also support higher frequencies for detail and lower frequencies for deep-water performance, something older single-frequency models cannot do. If your readings are inconsistent or you fish varied depths, an upgrade pays dividends.

How do I know if a new transducer will work with my existing chartplotter?

Check three things: (1) Your sonar module's connector type, 8-pin, 12-pin, or proprietary. (2) The frequency bands your module supports, if your module only reads 50 kHz, a 200 kHz transducer won't work. (3) The cable length and connector compatibility. Most modern Garmin and B&G transducers use auto-ID technology, which automatically configures the sonar when you plug in a compatible transducer. Always verify the transducer's specification sheet against your sonar module's manual before purchasing.

What's the difference between high-frequency and low-frequency transducers for deep water?

Low-frequency transducers (50 kHz) penetrate deep water and return strong bottom signals but lack detail. High-frequency transducers (200+ kHz) show excellent target separation and structure detail but lose range in deep water. For deep-water fishing, mid-band CHIRP transducers (80-165 kHz) offer the best compromise, they reach significant depths while delivering clearer returns than pure low-frequency options. The Garmin GT17M-THF reaches 2,400 feet in freshwater using this mid-band approach.

What should I do if my transducer stops reading depth after installation?

First, verify the power connector is seated fully and the cable isn't pinched or damaged. Check that the sonar software recognizes the transducer, look for auto-ID status in your chartplotter's settings. If the transducer is newly installed, confirm it's positioned below the waterline and not in an air pocket or turbulence zone created by the hull. Ensure the tilt angle matches your hull deadrise. If readings remain intermittent, the transducer element may have air trapped inside; a brief run at speed often purges it.

---

Upgrading your marine transducer transforms how you navigate and fish. Accurate depth readings build confidence in shallow water. Clear sonar images reveal structure you've been missing. At Charleston Yachting, we stock Garmin and Airmar transducers chosen for reliability and performance across freshwater and saltwater conditions. Shop our transducer selection and get same-day shipping on the upgrade that will change how you see below the surface.
