Why Garmin Network Data Sharing Slows Down

A slow Garmin network almost never fixes itself, and the cause is usually physical. Most data-sharing problems on a boat trace back to cabling, connectors, or a switch that caps the whole system. Understanding why Garmin network data sharing slows down starts with one fact: the marine network moves data at the speed of its weakest link, not its fastest device.

Three things cause most slowdowns:

• Corroded or loose connectors. Salt air attacks every pin. One bad connection can drag the whole network down.
• Old or mixed cable types. Legacy Garmin Marine Network cable and newer BlueNet cable are not the same thing.
• A dead or overloaded port. A failed switch port can bottleneck every device behind it.

Garmin Marine Network Setup: Building a Fast Foundation

A fast Garmin marine network setup starts with the switch and the cable, not the chartplotter. The network backbone decides your ceiling before a single device connects.

Garmin's own architecture makes this clear. The GMS 10 network port expander is a 100 MB switch built to move data at Ethernet-like speeds, and Garmin describes it as up to 10 times faster than some competing systems. Newer builds using the BlueNet 20 switch push into a higher-speed standard entirely.

Cabling and Switch Choices That Set Your Speed Ceiling

Two rules keep the foundation solid:

• Match the switch to the network generation. GMS 10 for legacy Garmin Marine Network gear, BlueNet 20 for BlueNet-compatible chartplotters.
• Use sealed, water-resistant connections everywhere. The GMS 10 has sealed covers to keep moisture off unused ports. Use them.
• Keep cable runs short and separate from power cables. Electrical noise degrades signal quality.

If you are expanding a system, the Garmin GMS 10 Network Port Expander is the plug-and-play hub for legacy networks. Peripherals are detected automatically once connected.

Garmin Chartplotter Data Sharing: What Actually Moves Across the Wire

Garmin chartplotter data sharing moves more than most owners realize, and that volume explains the slowdowns. Each connected unit pulls sonar, maps, user data, radar, IP camera feeds, and Panoptix sonar across the same backbone.

A networked chartplotter like the GPSMAP 1222 shares all of it: sonar, maps, radar, cameras, and Panoptix sonar among multiple units. Add NMEA 2000 traffic for autopilots, AIS, and instruments, and the wire gets busy.

Garmin Chartplotter Network Troubleshooting: Step-by-Step Fixes

Garmin chartplotter network troubleshooting follows a fixed order: confirm the network, then check each connection, then test devices one at a time. Work through these steps before buying any parts.

1. Power-cycle the whole network. Shut down every unit and the switch, wait, then power the switch first.
2. Inspect every connector for corrosion. Green or white residue means replace the cable.
3. Reseat each cable firmly. A loose twist-lock connector causes intermittent drops.
4. Check the switch for a failed port. Move a known-good device to each port in turn.
5. Isolate devices. Disconnect all but one chartplotter, then add units back one at a time.
6. Confirm software versions match. Mixed firmware can cause devices to drop off the network.

Confirming Every Device Is on the Same Network

A device that never appears on the network list is not a speed problem. It is a connection problem. Check that each unit shows up in the network device list on your chartplotter. If a unit is missing, the cable or port is the culprit, not bandwidth.

Garmin Software Update Network Issues: When Updates Stall or Fail

Garmin software update network issues usually come from one of two places: a weak connection during download, or a chartplotter that cannot see the update source. Updates pull large files, so a marginal cable that works for charts can fail mid-download.

Fix a stalled update with this checklist:

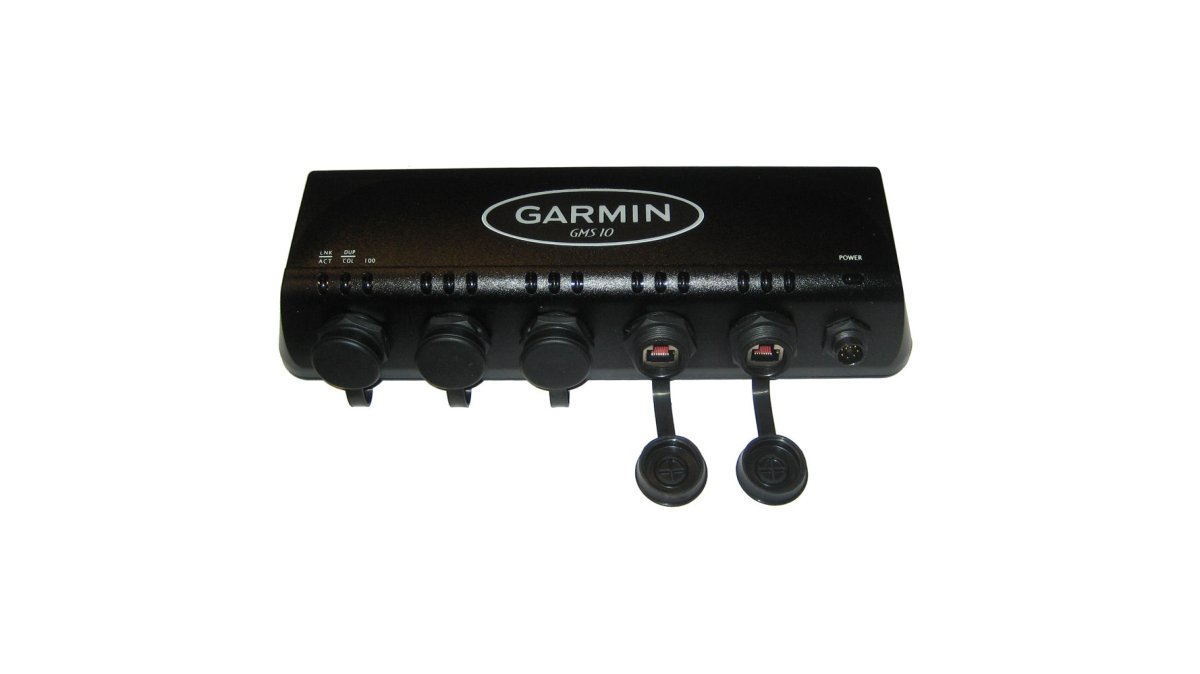

Garmin GMS 10 Network Port Expander [010-00351-00] →

• Confirm the chartplotter has a stable network connection before starting
• Download updates over Wi-Fi first, then push to networked units
• Free up storage space on the receiving unit
• Retry from a wired connection if Wi-Fi drops
• Update one device at a time on older networks

The GPSMAP 1022 and 1222 both support built-in Wi-Fi and the ActiveCaptain app, which lets you manage updates from a phone. That route avoids dragging large files across a marginal wired link.

Hardware Upgrades That Boost Garmin Network Data Sharing Speeds

The single most effective upgrade is replacing an old switch with a current-generation one. A tired switch with failing ports will always be the bottleneck. Moving to a BlueNet 20 switch, or adding a GMS 10 to a legacy network, restores full speed across every connected device.

The Garmin BlueNet 20 Switch adds ports to a BlueNet network and keeps high-speed sharing intact as you expand. For a chartplotter that anchors the whole system, the Garmin GPSMAP 1222 is fully network-capable for Garmin Marine Network and NMEA 2000, and shares sonar, maps, radar, and camera feeds across multiple units.

Common Mistakes to Avoid

The most common mistake is upgrading the chartplotter while leaving old cable and switches in place. The new display inherits the old bottleneck and performs no better.

Others we see often:

• Mixing GMS and BlueNet hardware on one switch without checking compatibility
• Skipping corrosion checks until a device drops offline mid-passage
• Daisy-chaining too many devices instead of using a proper switch
• Ignoring unused ports that stay open to moisture
• Updating firmware on every unit at once, which overloads the network

Conclusion

A slow Garmin network is a fixable problem, and the fix is usually a switch, a cable, or a connector, not a whole new electronics package. Work through the troubleshooting steps first, then upgrade the backbone where it counts.

Charleston Yachting stocks the Garmin networking hardware that solves these problems, from the GMS 10 expander to the BlueNet 20 switch, with same-day shipping so your boat is not waiting on parts.

Shop All and get your network running at full speed.
