What Is a Marine Network Backbone Kit and Why It Matters
A marine network backbone kit is the foundation of a modern NMEA 2000 network, containing the core cables, connectors, power supply, and terminators needed to connect chartplotters, GPS units, radios, and sensors into one integrated system.
![Garmin NMEA 2000 Starter Kit [010-11442-00]](https://cdn.shopify.com/s/files/1/0842/4914/9751/files/37765XL.jpg?v=1775841974)
Without a proper backbone, your electronics operate in isolation: a chartplotter can't talk to your autopilot, and your fish finder doesn't feed data to your navigation display. A marine network backbone kit provides the wiring infrastructure for full device-to-device communication.
The challenge is choosing among kits that differ in cable lengths, connector types, and power configurations. Pick wrong and you'll waste money on excess cable or fall short when you expand.
NMEA 2000 Backbone Components: The Essential Building Blocks
Every marine network backbone kit contains the same core components, though quantities and specifications vary. Understanding each piece makes it easier to size a kit for your boat.
Backbone cable is the main trunk line running through your vessel; all other devices connect to it through T-connectors.
Drop cables branch off the backbone to connect individual devices. Typically 2 to 3 meters, they plug into T-connectors and physically connect your chartplotter, GPS, or radio to the network.
Power cable supplies voltage to the network. NMEA 2000 networks run on 12 volts (or 24 volts on larger commercial vessels), connecting to your battery or power bus through a dedicated breaker or fuse.
![Digital Yacht NMEA 2000 Starter Cable Kit [ZDIGN2KIT]](https://cdn.shopify.com/s/files/1/0842/4914/9751/files/67952XL.jpg?v=1775844545)
T-connectors are the junction points where drop cables branch off the backbone, each adding one device. Most starter kits include two to four; buy more separately if needed.
Termination resistors close off the ends of the backbone.
Backbone Cable and Drop Cable Lengths
Backbone cable length determines how far your network can span. A 6-meter backbone works for recreational boats under 35 feet with devices clustered in the wheelhouse and cabin; 10 meters suits boats 35 to 50 feet. Larger vessels or those with devices spread bow to stern need 20-meter backbones or longer.
Drop cable length matters less since you can route it to suit your layout. A 2-meter drop cable reaches most device locations; 3- or 4-meter drops are available separately for distant devices.
The trade-off: longer cables mean more flexibility in device placement but more wire to run. Most boat owners underestimate the space required to route cables cleanly behind panels and through cable trays, so plan for longer runs than you initially think.
Power Connection and Network Power Supply
NMEA 2000 networks require dedicated power. The network power supply in your kit draws current from your vessel's main battery or auxiliary power bus. A typical network draws 1 to 3 amps at 12 volts, depending on device count and draw.
This is where power budgeting becomes critical. If you plan to add many devices, say, a chartplotter, autopilot, fish finder, AIS transceiver, and wind instrument, verify that your vessel's power system can handle the total load. A common mistake is connecting too many high-draw devices to an undersized power supply.
Most starter kits include a power cable with an inline fuse matched to the kit's intended device count. If you expand beyond the kit's design, you may need to upgrade the fuse and power cable for the increased current draw.
T-Connectors and Termination Resistors
Each T-connector adds one device connection point. A kit with four T-connectors lets you connect up to four devices initially; need a fifth? Buy another T-connector and splice it into the backbone.
Termination resistors are equally important but often overlooked. The NMEA 2000 standard requires exactly two terminators, one at each physical end of the backbone cable. If they're missing or misplaced, the network suffers signal corruption and devices drop offline or behave erratically.
Most kits include one male and one female terminator; verify your kit includes both before installation.

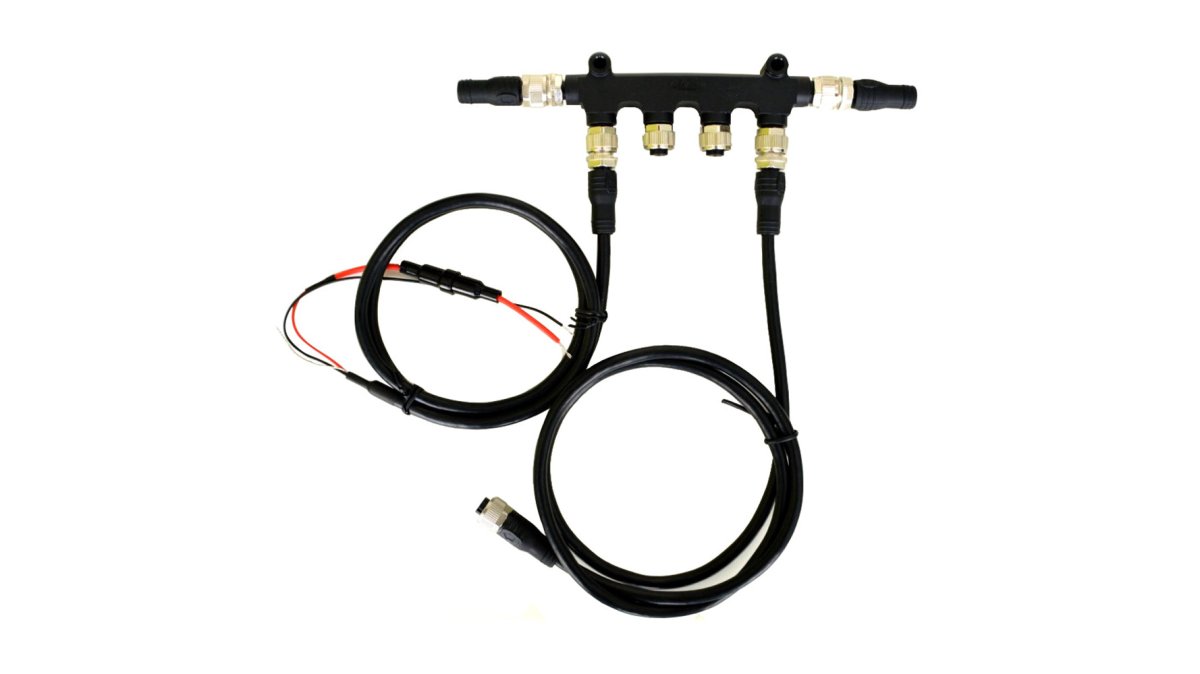

![Digital Yacht NMEA 2000 Starter Cable Kit [ZDIGN2KIT]](https://cdn.grandranker.com/articles/digital-yacht-nmea-2000-starter-cable-kit-zdign2kit-product-1792540089.jpg)
Side-by-Side Comparison: NMEA 2000 Starter Kit Options
| Kit | Starting Price | T-Connectors | Terminators | Best For |
|---|---|---|---|---|
| Garmin NMEA 2000 Starter Kit | $119.99 | 2 | 1 pair | Small boats, budget-conscious |
| Digital Yacht NMEA 2000 Starter Cable Kit | $139.95 | 4-way | 1 pair | Compact layouts, expandable |
| Raymarine SeaTalkng Starter Kit | $134.99 | 1 | 2 | Raymarine ecosystems |
| Maretron NMEA 2000 Starter Kit 1 | $220.00 | 1 | 2 | Larger vessels, premium build |
The comparison shows a clear price-to-cable-length trade-off. Garmin is the most affordable entry point with solid cable lengths for boats under 35 feet. Digital Yacht prioritizes expandability with its 4-way T-piece and metal connectors. Maretron's premium kit offers the longest backbone cable and thickest gauge connectors for larger vessels or commercial use.
Garmin NMEA 2000 Network Starter Kit: Entry-Level Flexibility
The Garmin NMEA 2000 Starter Kit at $119.99 is the most popular choice for recreational boat owners stepping into networked marine electronics for the first time. It includes a 6-meter backbone cable, 2-meter drop cable, 2-meter power cable, two T-connectors, and a pair of terminators, enough to connect up to two devices initially.
![Maretron NMEA 2000 Starter Kit 1 [CABLE-STARTER-1]](https://cdn.shopify.com/s/files/1/0842/4914/9751/files/93814XL.jpg?v=1775847622)
The strength of this kit is its balance of price and functionality. Six meters of backbone suits most boats under 40 feet.
The trade-off is that the kit doesn't scale as easily as premium options; on a larger boat or with aggressive expansion, you'll buy additional cables and connectors separately.
NMEA 2000 Terminator Placement and Network Topology
Terminator placement is where many DIY installations go wrong. The NMEA 2000 standard requires exactly two terminators: one at each end of the backbone cable, not at each end of the boat.
This matters when your backbone doesn't run in a straight line.
A common mistake is placing terminators at device connection points, which breaks the network. Terminators must be at the backbone ends only, even if some T-connectors are unused.
Another mistake is daisy-chaining drop cables. Each must connect directly to the backbone via a T-connector; extending from one device to another in series means the second device won't communicate reliably.
Digital Yacht NMEA 2000 Starter Cable Kit [ZDIGN2KIT] →
Proper topology looks like a tree: the backbone is the trunk, T-connectors are branches, and drop cables are the smaller branches leading to individual devices. Any other configuration causes network instability.
Sizing Your Backbone for Vessel Layout and Device Count
Choosing the right backbone length requires two calculations: the physical cable run and the planned device count.
Physical cable run is the actual distance your backbone must travel from the power supply to the farthest device. Measure the path around obstacles, not the straight-line distance, and add 1 to 2 meters for slack.
Device count determines how many T-connectors you need. Count every device that will connect: chartplotter, autopilot, fish finder, AIS, wind instrument, sensors, and so on. Each needs one T-connector. Most starter kits include two to four; if you plan five devices and your kit has two, you'll need to buy three more.
A sizing worksheet helps clarify this:
- Backbone cable length needed: _____ meters
- Number of devices to connect: _____
- T-connectors included in kit: _____
- Additional T-connectors to buy: _____
- Power cable length adequate? Yes / No
If your backbone length exceeds 20 meters or your device count exceeds six, consider a larger kit or a network switch. A switch acts as a central hub and lets you expand without adding more backbone cable.
Kit Limitations and Components to Buy Separately
No starter kit includes everything you might need. Understanding the gaps prevents frustration and unexpected costs.
Additional T-connectors are the most common purchase after the initial kit. If your kit includes two and you want four devices, you'll buy two more separately.
Extended backbone cable is needed if your boat is larger than the kit anticipates.
Network switch becomes relevant for larger networks. With six or more devices, a switch centralizes connections and eliminates the need for a single long backbone: run a shorter backbone to the switch, then branch shorter drop cables to each device.
Higher-gauge power cable may be needed if your total network draw exceeds the kit's specifications.
Diagnostic tools like a multimeter or NMEA 2000 analyzer help troubleshoot devices that drop offline or behave erratically. They aren't included in starter kits but are valuable for complex installations.
Installation Steps and Power Budgeting Essentials
Installing a marine network backbone kit follows a logical sequence. Rushing through these steps is where most problems originate.
Step 2: Install the backbone cable. Route it along your planned path, securing it every 18 inches with cable ties or clamps.
Step 5: Install terminators at backbone ends. Install the male terminator at one end of the backbone and the female terminator at the other end.
Step 6: Connect drop cables to devices. Route drop cables from each T-connector to its corresponding device. Secure cables to prevent strain on connectors.
Step 7: Power on and test. Turn on the power supply and check that each device recognizes the network.
Power budgeting happens before you install anything.
The most overlooked aspect of power budgeting is voltage drop.
Choosing the right marine network backbone kit depends on three factors: boat size, device count, and budget.
Frequently Asked Questions
What components are included in a typical NMEA 2000 starter kit?
A marine network backbone kit includes a backbone cable (typically 6-10 meters), drop cables for device connections (1-2 meters each), a power cable with in-line fuse protection, T-connectors to branch devices off the main backbone, and male and female termination resistors to complete the network. The Garmin NMEA 2000 Starter Kit ($119.99) provides a 6-meter backbone, 2-meter drop cable, 2-meter power cable, two T-connectors, and both male and female terminators, everything needed for a basic three-device network on smaller vessels.
How do I know if my boat needs a larger backbone kit or if a starter kit is sufficient?
Count your installed and planned marine electronics devices (chartplotters, GPS units, radios, transducers). Starter kits typically support 2-3 devices with 6-meter backbone cables. If your vessel exceeds 40 feet or you plan to add more than three devices, consider the Maretron NMEA 2000 Starter Kit 1 ($220.00) with its 10-meter backbone cable, or the Raymarine SeaTalkng Backbone Cable Kit ($314.99) with multiple backbone segments totaling 30 meters. Measure your cable run from the network power supply to your farthest device to confirm adequate length before purchasing.
Where exactly should the male and female terminators be placed on an NMEA 2000 backbone?
Termination resistors must be installed at both ends of the backbone cable to prevent signal reflections and network failures. Place one terminator at the end closest to your network power supply and the other at the far end of the backbone run. The Digital Yacht NMEA 2000 Starter Cable Kit ($139.95) includes removable terminators that slide onto the backbone ends. Failure to terminate both ends will cause device communication errors and system instability, even if all other components are correctly installed.
Are all NMEA 2000 starter kits compatible with each other, or do I need to stick with one brand?
NMEA 2000 is an open standard, so cables and connectors from different manufacturers are physically compatible. You can mix Garmin, Digital Yacht, Maretron, and Raymarine components on the same backbone. However, Raymarine SeaTalkng uses a different connector type (5-way) than the standard Micro-C connectors used by Garmin, Digital Yacht, and Maretron. Verify your existing devices' connector type before purchasing a kit to ensure true compatibility.
What happens if I need to expand my network beyond what a starter kit provides?
NMEA 2000 networks are designed for expansion. You can extend the backbone by purchasing additional backbone cable and T-connectors, or you can daisy-chain two starter kits together using standard Micro-C connectors. For example, the Garmin kit's 6-meter backbone can be extended by connecting additional backbone segments with T-connectors. Always maintain proper termination at both ends of the expanded backbone and verify that your network power supply can handle the total current draw of all connected devices before adding equipment.
