Why Update Your Marine Chartplotter Software

Keeping your chartplotter software current by learning how to update marine chartplotter software is not optional if you want safe, reliable navigation.

Your chartplotter is your navigation system's brain. Garmin, Raymarine, B&G, and other major brands push updates that add new nautical chart coverage, fix GPS bugs, and improve responsiveness.

Most boat owners skip updates from fear of breaking something, losing waypoints, or the process itself.

Check Your Hardware Compatibility and Current Firmware Version

Verify your system supports the update before starting. Not all chartplotters support every firmware version, and incompatible installations fail.

Find your current firmware version:

1. Power on your chartplotter
2. Navigate to Settings or System Setup (location varies by brand)
3. Look for System Information or About
4. Write down the exact firmware version number displayed

Write this number down, it confirms the update worked.

Check hardware compatibility:

Visit the manufacturer's official website and search for your exact chartplotter model number (on the back or in documentation).

Modern Garmin GPSMAP units support multiple recent firmware versions; older units may be locked to specific versions. This is a hard limit.

Backing Up Your Waypoints and User Data Before the Update

Backing up your waypoints, routes, and settings means you sleep better at night. Updates shouldn't touch them, but backup is insurance.

What you're protecting:

• Waypoints (favorite fishing spots, anchorages, ports)
• Saved routes and tracks
• Custom map settings and display preferences
• User-created notes and annotations
• ActiveCaptain data and community contributions

Method 1: SD Card Backup (simplest)

Most modern chartplotters store user data on an SD card. If your unit has an SD card slot, use this method:

1. Power off the chartplotter completely
2. Remove the SD card (usually located on the back or side)
3. Insert it into your computer using an SD card reader
4. Copy the entire contents to a folder on your computer (name it with today's date)
5. Eject the card safely and reinsert it into the chartplotter
6. Power the unit back on

You now have a complete backup to restore if needed.

Method 2: Desktop Software Backup (for units without SD card)

Older chartplotters may require desktop software to backup data:

1. Connect your chartplotter to a computer via USB cable
2. Open the manufacturer's software (Garmin BaseCamp, Raymarine Lighthouse, etc.)
3. Select Backup or Export User Data
4. Choose a location on your computer and save the file
5. Label the file with your chartplotter model and date

This creates a backup file, keep it safe for restores.

How to Update Garmin Marine Charts and Software via SD Card

The SD card method is the most reliable way to update marine chartplotter software on Garmin chartplotters and is what professionals use on commercial vessels.

What you need:

• Your chartplotter
• An SD card (usually 2GB or larger, included with your unit or available separately)
• A computer with internet access

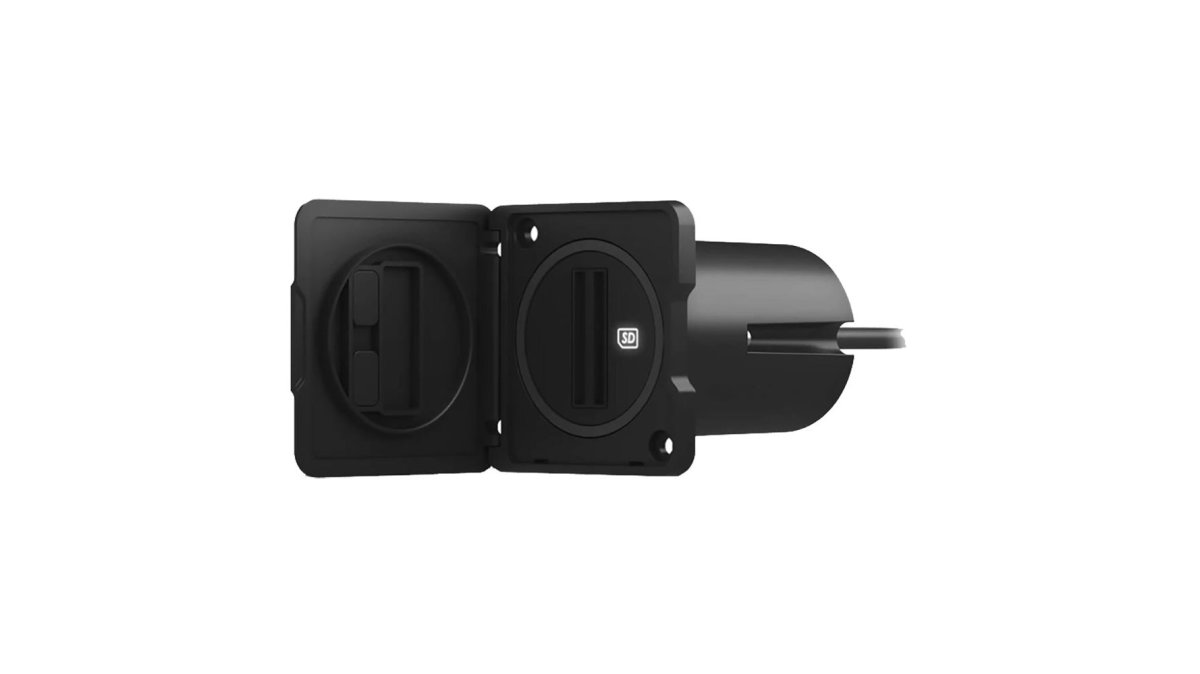

• An SD card reader (the Garmin USB Card Reader with USB-C Adapter Cable is waterproof and designed for helm use)
• The latest Garmin software file (downloaded from Garmin's website)

Step 1: Download the software

Go to Garmin's official support website, search your chartplotter model, find Downloads → Software Updates, and download the latest firmware file (e.g., gpsmap_943_v5.20.bin).

Step 2: Prepare the SD card

1. Insert a blank or existing SD card into your computer's card reader
2. Create a new folder on the card named Garmin
3. Inside that folder, create a subfolder named Software
4. Copy the downloaded firmware file into the Software folder
5. Safely eject the card from your computer

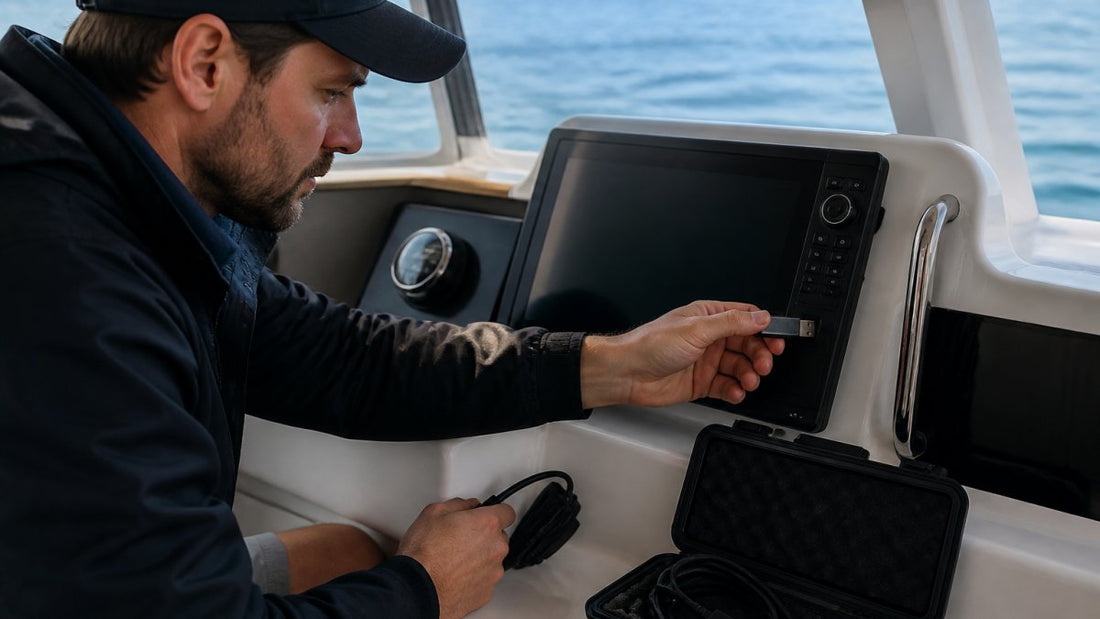

Step 3: Insert the SD card into your chartplotter

1. Power off your chartplotter completely
2. Locate the SD card slot (usually on the back, underneath, or on the side)
3. Insert the card gently until it clicks
4. Power the unit back on

Step 4: Start the update

1. Navigate to Settings → System → Software Update
2. The chartplotter will detect the SD card and show available updates
3. Select the firmware version and tap Install or Update
4. Do NOT power off the unit during this process

The update typically takes 5-15 minutes. Your screen may go black or show progress, this is normal. The chartplotter restarts automatically when complete.

Step 5: Verify the update

1. Wait for the unit to fully boot
2. Go back to Settings → System Information
3. Check the firmware version number
4. It should match the version you downloaded

If the version matches, the update succeeded.

Wireless Software Updates Using Wi-Fi and ActiveCaptain

If your chartplotter supports wireless updates, this is the fastest method, just Wi-Fi and a smartphone.

Compatibility check:

Wireless updates work on modern Garmin GPSMAP units with Wi-Fi.

What you need:

• Your chartplotter with Wi-Fi capability
• The free ActiveCaptain app (download from your phone's app store)
• Your boat's Wi-Fi network or a mobile hotspot
• Your Garmin account login

Step 1: Download ActiveCaptain

Garmin USB Card Reader w/USB-C Adapter Cable [010-02251-10] →

Open your phone's app store. Search for "ActiveCaptain" and install the official Garmin app.

Step 2: Connect your chartplotter to Wi-Fi

1. On your chartplotter, go to Settings → Connectivity → Wi-Fi
2. Scan for available networks
3. Select your boat's Wi-Fi network or your phone's hotspot
4. Enter the password
5. Wait for the connection to establish

Step 3: Check for updates in ActiveCaptain

1. Open the ActiveCaptain app on your phone
2. Tap Device or My Devices
3. Select your chartplotter from the list
4. Tap Check for Updates
5. If an update is available, tap Install

The app will push the update to your chartplotter over Wi-Fi.

Step 4: Verify completion

Check your chartplotter's system information to confirm the firmware version has changed.

Troubleshooting Marine Chartplotter Updates and Failed Installations

Updates occasionally fail due to lost Wi-Fi, corrupted files, or power loss. Here's how to recover.

Problem: Update started but chartplotter went black and won't restart

1. Wait 10 minutes without touching anything
2. If the screen remains black, hold the power button for 10 seconds and release
3. Let the unit sit for another 5 minutes
4. Power it back on

If it boots, check the firmware version. If unchanged, retry the update.

Problem: "Update failed" error message appears

1. Power off the chartplotter
2. Remove the SD card
3. Reformat the card on your computer (right-click → Format)
4. Re-download the firmware file from Garmin's website
5. Copy the file to the SD card again
6. Reinsert the card and retry the update

Problem: Wireless update won't start or keeps disconnecting

1. Move closer to your Wi-Fi router or hotspot
2. Reduce interference by turning off other Bluetooth devices
3. Restart your chartplotter's Wi-Fi connection (toggle Wi-Fi off and on)
4. Try the update again during a time with less network congestion

If wireless updates consistently fail, switch to SD card updates, they're more reliable in marine environments.

Problem: Update completed but waypoints are missing

1. Check if waypoints are hidden (some chartplotters hide waypoints after updates due to display settings)
2. Go to Settings → Map Display → Waypoint Visibility and ensure waypoints are enabled
3. If waypoints are still missing and you have a backup file, restore from your backup using the manufacturer's software

This is why backup is essential.

Marine Electronics Maintenance Checklist After Your Update

After updating, verify everything works correctly with these checks.

Immediate post-update verification (do this right after updating):

Check	What to Do	Expected Result
Firmware version	Go to Settings → System Information	Version matches what you installed
GPS signal	Wait 5 minutes for satellite lock	"GPS OK" or green signal indicator appears
Chart display	Zoom in and out on the map	Charts load smoothly, no freezing
Waypoints visible	Navigate to a saved waypoint	Waypoint displays on the map
Sonar function	If equipped, check sonar display	Sonar returns appear on screen
Wi-Fi connectivity	Check Settings → Connectivity	Wi-Fi shows connected or available

Broader system checks (do these within 24 hours):

• Test your autopilot integration if connected via NMEA 2000
• Verify any third-party devices (radar, cameras, engine monitoring) still communicate with the chartplotter
• Check that custom map overlays or data still display correctly
• Confirm ActiveCaptain community data syncs if you use it

Most updates don't break integrations, but catch issues early rather than troubleshooting at sea.

Network connectivity after update:

If your chartplotter connects to other devices via NMEA 2000 or NMEA 0183, verify those connections work. Some updates reset network settings.

1. Power off all connected devices
2. Power them back on in this order: chartplotter first, then other devices
3. Wait 30 seconds between each power-on
4. Check the network status in your chartplotter's settings

This usually restores communication. If not, consult your documentation or contact the manufacturer.

Conclusion

Updating your marine chartplotter software keeps your navigation system accurate, secure, and reliable. The process itself is straightforward once you understand the steps: backup your data, choose your update method, and verify completion.

Start with an SD card backup today, even if you're not updating yet. That single step removes the fear from future updates.

---

Keeping your marine electronics current is one of the smartest investments in vessel safety you can make.

Garmin's official support and software downloads

NMEA 2000 network standards for marine electronics

U.S. Coast Guard guidance on vessel navigation equipment requirements

Frequently Asked Questions

How often should I update my marine chartplotter software?

Garmin and other manufacturers release updates quarterly or as needed for critical fixes. Check the ActiveCaptain app monthly for available updates. Hydrographic data and navigation charts change seasonally, so updating before your boating season is essential. Most recreational users update 2-4 times per year, while professional mariners update more frequently to maintain the latest nautical charts and safety features.

Do I need an SD card to update my chartplotter?

Not always. Most modern Garmin chartplotters support wireless updates via Wi-Fi through the ActiveCaptain app. However, SD card updates are faster and more reliable, especially for large map database files. If your chartplotter lacks Wi-Fi, an SD card reader like the Garmin USB Card Reader ($129.99) becomes necessary. Keep an SD card on hand as a backup method for troubleshooting failed wireless updates.

What happens if a chartplotter update fails?

A failed update can leave your chartplotter in an unstable state, but recovery is possible. First, restart the unit and attempt the update again. If it fails a second time, restore from your backed-up waypoint file and retry with a freshly downloaded update file. For persistent failures, use the SD card method instead of Wi-Fi. If the chartplotter won't boot, contact Garmin support, most units have factory reset procedures that preserve your data.

Can I update my marine electronics via Wi-Fi?

Yes, if your chartplotter has built-in Wi-Fi connectivity. Garmin GPSMAP models with ActiveCaptain support wireless updates directly from the app on your smartphone or tablet. This method is convenient but requires a stable connection and sufficient battery power. For large map database updates, an SD card transfer is faster and more reliable. Wi-Fi updates work well for firmware patches but may timeout on large hydrographic chart downloads.
