1. Get Transducer Installation Best Practices Right the First Time

Depth sounder accuracy starts before the first reading: a transducer mounted in the wrong spot or at the wrong angle undermines depth sounder accuracy no matter how good the electronics are. More accuracy complaints are traced to installation than to failed hardware. The National Marine Electronics Association publishes installation standards that guide most of what follows.

Choose the Right Mounting Location

The transducer needs clean, undisturbed water. Mount it well aft of the keel or any through-hull fitting, and away from prop wash. On a sailboat, the sweet spot is usually forward of the keel on the centerline, or in a dedicated fairing pocket. Turbulence and air bubbles scatter the acoustic pulse before it reaches the bottom.

Match Tilt Angle to Hull Deadrise

A transducer firing straight down through a hull with significant deadrise fires off-axis, weakening the echo return. Deadrise is the angle between the hull bottom and horizontal. For a 16° to 24° deadrise, a 20° tilted-element sensor corrects the beam. Airmar's DT800 tilted-element design tilts the ceramic inside the housing, giving fairing-block performance without a hull protrusion.

2. Calibrate Depth Sounder Offset Settings for Your Vessel

Depth sounder offset settings tell the display what "zero" means: the waterline, the transducer face, or the keel. Get this wrong and every reading is off by a fixed amount, the kind of error that puts a boat aground. Set the offset once, then verify it.

Waterline vs. Keel Offset: Which to Choose

Waterline offset reports depth from the surface. Keel offset reports depth below the lowest point of the hull, which is what you care about in shallow water. Racers and cruisers who push into thin water should use keel offset. Airmar's CAST app, used with the UDST820 TriSonic and DST820 sensors, lets you apply offsets for depth below keel or depth from surface from your phone.

Deriving the Offset Number From a Lead-Line Measurement

Most owners guess the offset. Don't. Drop a lead line until it touches bottom, read the wet mark against a tape, and note the true depth. Then read the display. The difference is your offset, and the sign matters:

• Display reads shallower than the line (display 18 ft, line 22 ft): the display is measuring from the transducer face, which sits 4 ft below the waterline. Enter a positive keel offset of 4 ft so the display subtracts the transducer's depth below the surface and reports true depth under the keel.
• Display reads deeper than the line (display 26 ft, line 22 ft): the display is already set to waterline and the transducer is 4 ft down. Enter a negative offset of 4 ft to bring the reading back to the keel.

Do this in flat water with the boat stationary. A 1 ft error at the transducer becomes a 1 ft error everywhere on the chart, in a 6 ft channel, the difference between a safe pass and a grounding.

Entering the Offset on Common Displays

The menu path differs by brand, but the logic is the same. On a Raymarine MFD, go to Menu > Set-Up > Depth > Depth Offset. On a Garmin chartplotter, it is Settings > My Vessel > Depth Offset. On B&G and Simrad displays, look under Settings > Transducer > Depth Offset. On Furuno sounders, the offset lives in the Installation menu, so you may need to unlock the installer level.

Two rules apply across all of them:

1. Set the offset once, then verify with a lead line. Do not stack a keel offset on top of a waterline offset, pick one reference and stay with it.
2. Re-check the offset after any haul-out, transducer swap, or software update. Firmware updates occasionally reset offset values to zero, and a zeroed offset on a keel-referenced display reads 4 to 6 ft too deep.

Offset and Shallow-Water Alarms

The offset you choose changes when your shallow-water alarm fires. A keel-referenced display set to alarm at 6 ft warns you about 6 ft under the keel, the number that matters. A waterline-referenced display set to the same 6 ft warns you when the water is 6 ft deep total, which on a boat drawing 5 ft leaves almost no margin.

3. Measure Actual Depth With a Lead Line to Verify Readings

A lead line is still the cheapest calibration tool on any boat. Drop a weighted line to the bottom, mark it, and compare the measurement to the display.

Do this check at the start of every season, and again after any haul-out or transducer service. A lead line verification takes ten minutes and catches errors calibration menus alone won't reveal.

4. Troubleshoot Marine Depth Sounder Interference at the Source

Troubleshooting marine depth sounder interference means finding what's corrupting the signal, not just adjusting the display. It shows up as flickering numbers, sudden depth spikes, or dropped readings, and comes from three sources: electrical noise, physical turbulence around the transducer, and environmental conditions in the water column.

Electrical Noise and Network Conflicts

Two echo sounders transmitting at the same frequency interfere with each other. That's why 235 kHz sensors are common: they run alongside traditional 50/200 kHz sounders without conflict. Route transducer cables away from power cables, alternators, and VHF coax.

A quick diagnostic: turn off every other electronics load, fridge, inverter, chartplotter, VHF, and watch the depth reading. If the numbers settle, the noise is electrical, not acoustic.

Environmental Factors That Degrade Signal

Aerated water is the other half of the problem. Wake from other boats, heavy chop, and your own hull's turbulence at speed push air under the transducer. The acoustic pulse can't travel through air pockets, so the echo return collapses. Advanced signal filtering in newer smart sensors helps the processor reject these false returns.

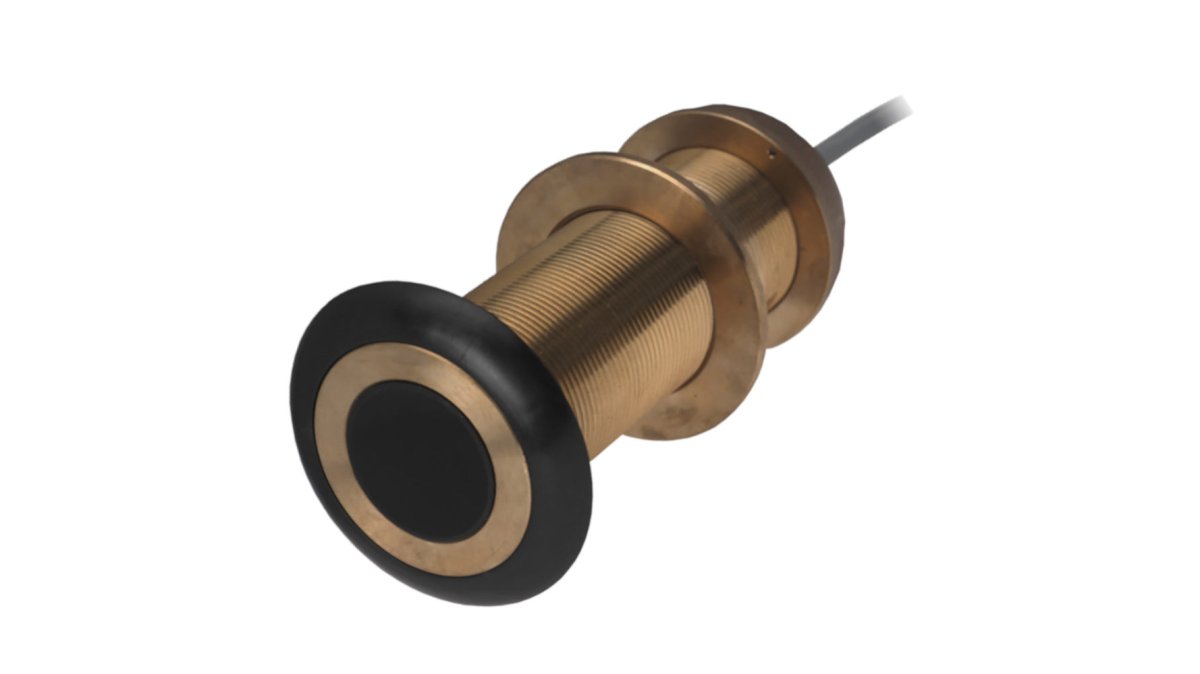

Airmar DT800 NMEA 2000 Bronze Retractable Long Stem Thru-Hull w/Depth →

Three water-column factors change how far and how cleanly the pulse travels:

• Salinity. Sound travels about 4,900 ft/s in fresh water and about 5,000 ft/s in salt water, roughly a 2 percent difference. A sounder calibrated in fresh water and then used in salt water (or vice versa) will read a few percent off, which at 100 ft is a couple of feet. If you trailer between a lake and the coast, re-verify with a lead line after the switch.
• Temperature. Sound speed rises with water temperature, from roughly 4,800 ft/s in 32°F water to about 5,050 ft/s at 77°F. A thermocline, the sharp temperature boundary between warm surface water and cold deep water, can reflect or bend the acoustic pulse, producing a false bottom reading at the thermocline depth instead of the real bottom. If your display suddenly reads 30 ft in water you know is 80 ft deep, suspect a thermocline, not a failed transducer.
• Depth and bottom type. Soft mud returns a weaker echo than rock or sand. In deep water over mud, the return may drop below the noise floor and the display will hunt or blank. This is a physics limit, not a calibration error.

Gain, Sensitivity, and Noise Suppression Settings

Gain (sometimes labeled sensitivity) controls how much the receiver amplifies the returning echo. Too low and weak returns from soft bottoms disappear; too high and the sounder amplifies noise, surface clutter, and the second echo off the bottom, producing phantom readings. The workflow:

1. Start at the factory default gain for your sounder, usually around 50 percent or "auto."
2. In deep, flat water over a known bottom, raise gain slowly until the bottom trace is solid and the digital number stops flickering. Stop there.
3. If you see a second, fainter trace below the real bottom, you have too much gain, back it off until the second trace disappears. That second trace is the pulse bouncing off the bottom, returning to the hull, and bouncing down again.
4. In turbulent or aerated water, drop gain slightly rather than raising it. Raising gain to punch through bubbles usually just amplifies the noise the bubbles create.

Most modern sounders also offer a noise suppression or interference rejection setting. Set it low in clean water and higher in busy harbors. Set it too high and the processor rejects real returns along with the noise, so treat it as a last resort after gain is dialed in.

A Simple Interference Test

Anchor in 30 to 40 ft of calm water with the engine off. Note the reading. Then start the engine, turn on the inverter, and key the VHF. If the reading changes, the problem is electrical. If it stays steady at anchor but drops out at speed, the problem is turbulence. If it reads a consistent false depth in deep water, the problem is environmental, thermocline or bottom type.

5. Fix Poor Readings at Speed With Fairing and Placement Tweaks

Readings that hold steady at anchor but drop out at six knots point to one thing: the transducer is sitting in turbulent water. A fairing block smooths the transition between the hull and the transducer face, keeping water flow attached and the beam clean.

If fairing isn't enough, move the transducer deeper or further aft. The goal is a spot where water flows past the face without separating.

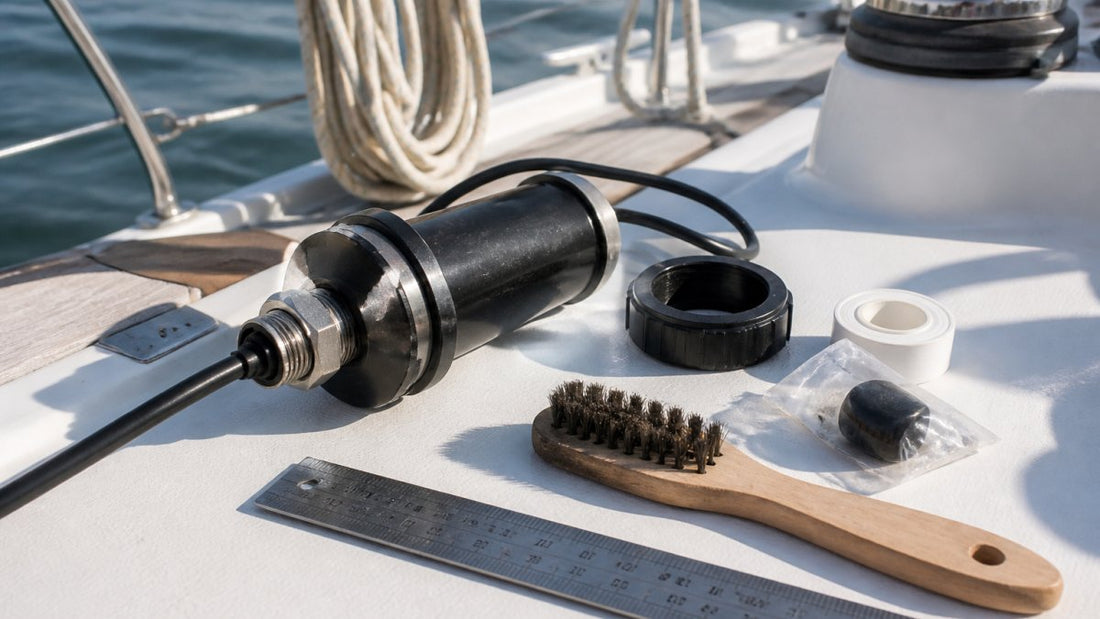

6. Maintain and Clean the Transducer Face Every Season

A fouled transducer face is the most common cause of creeping accuracy loss. Barnacles, algae, and even a thin film of growth block the acoustic window and weaken the echo return.

Check the face at every haul-out, and pull retractable inserts a few times a season if the boat lives in the water. Avoid abrasive cleaners on the urethane acoustic window; they scratch the surface and degrade signal transmission.

7. Upgrade to a Smart Sensor With Built-In Signal Filtering

When installation, calibration, and cleaning are dialed in and readings still wander, the sensor itself is the limit.

The Airmar UDST820 TriSonic is a strong option for boats that want the most out of a single thru-hull fitting.

[IMAGE: A sailor's hand holding a smartphone running a sensor calibration app next to a sailboat instrument display showing depth readings | section:7.

Depth sounder accuracy comes down to a chain: clean water at the face, correct offset, and a sensor that can reject noise. Break any link and the whole system lies to you. Charleston Yachting stocks the transducers and smart sensors that hold the chain together, from Airmar's DT800 and UDST820 to Navico's ForwardScan, all backed by same-day shipping and expert-curated inventory. Shop All at Charleston Yachting and get the accurate depth readings your navigation depends on.
