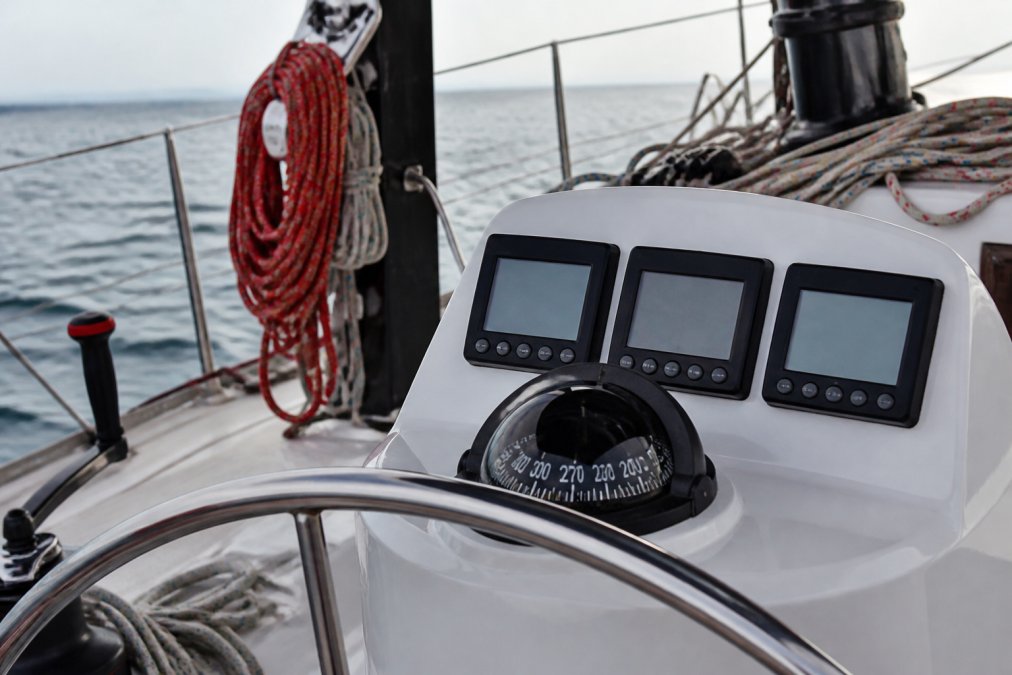

Benefits of Integrated Sailing Instrument Systems
Table of Contents
- Why Integrated Sailing Instrument Systems Beat Standalone Gauges
- Garmin vs B&G Marine Navigation Systems: Which Ecosystem Fits Your Boat
- NMEA 2000 Network Architecture: The Backbone That Makes Integration Work
- Best Practices for Marine Sensor Calibration
- Better Data at the Helm: How Integrated Systems Improve Sailing Performance and Safety
- Troubleshooting Integration Failures and Legacy System Trade-Offs
- Mobile Integration, Weight, and Power: What Modern Systems Add
- Conclusion
- Frequently Asked Questions
Last Updated: September 21, 2026
Why Integrated Sailing Instrument Systems Beat Standalone Gauges
The benefits of integrated sailing instrument systems come down to one idea: shared data beats isolated data. Integrated sailing means every sensor, display, and processor draws from the same network, so wind, depth, speed, and heading readings agree instead of contradicting each other.

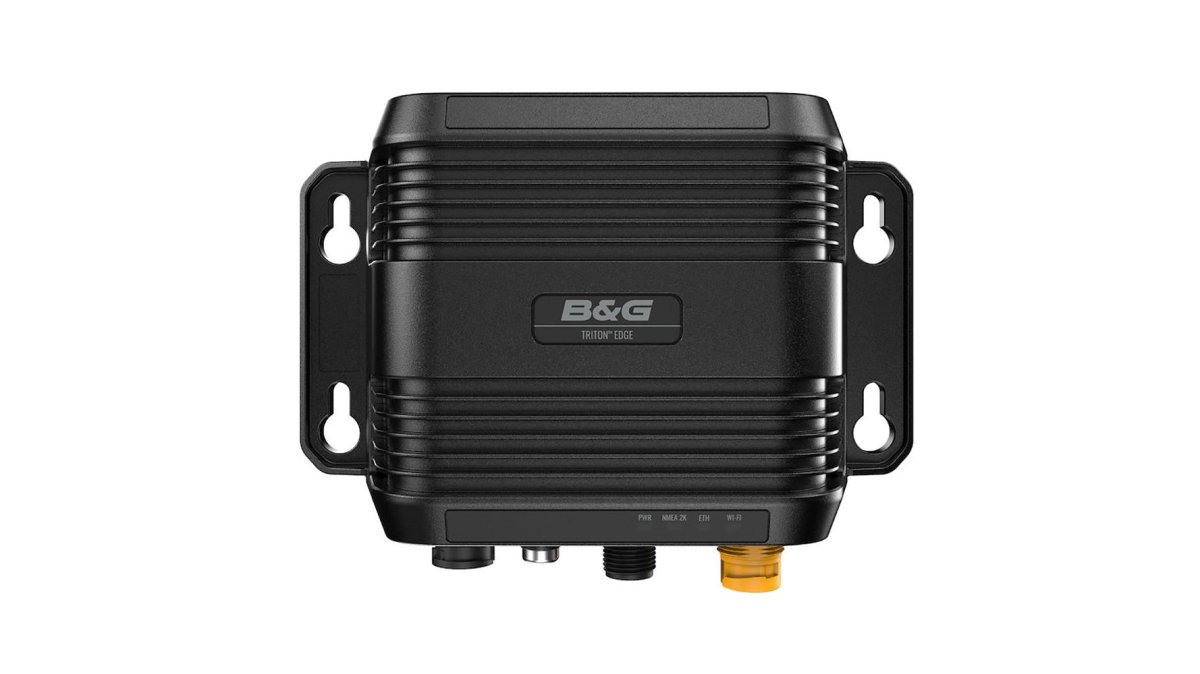

![BG Triton Edge Sailing Processor [000-15134-001]](https://cdn.grandranker.com/articles/bg-triton-edge-sailing-processor-000-15134-001-product-1790030543.jpg)
Garmin vs B&G Marine Navigation Systems: Which Ecosystem Fits Your Boat
The Garmin vs B&G marine navigation systems question has a practical answer: B&G leans toward sailing-specific data processing, Garmin toward broad onboard integration. Both speak NMEA 2000, so either can sit on the same backbone.
![BG Triton Edge Sailing Processor [000-15134-001]](https://cdn.shopify.com/s/files/1/0842/4914/9751/files/96601XL.jpg?v=1775847901)
| System Pack | Price | Displays | Wind Sensor | Best For |
|---|---|---|---|---|
| BG Triton2 Wired Pack | $1,679.00 | 1 | WS310 wired | Single-helm cruisers |
| BG Triton2 Wireless Pack | $1,784.00 | 1 | WS320 wireless | Owners avoiding mast wiring |
| BG Triton2 Wireless 2-Display Pack | $2,309.00 | 2 | WS320 wireless | Dual-station cockpits |
| Garmin GMI 40 Wired Sail Pack | $1,499.99 | 1 | gWind wired | Garmin BlueNet boats |
| Garmin GMI 40 Wireless Wind Pack | $1,099.99 | 1 | gWind Wireless 2 | Wind-only upgrades |
| Raymarine i70s System Pack | $1,759.99 | 1 | Standard wind vane | Existing SeaTalkng networks |
NMEA 2000 Network Architecture: The Backbone That Makes Integration Work
NMEA 2000 is the data bus standard that lets marine electronics from different manufacturers share information over a single powered backbone. Every device, from depth sounder to autopilot, publishes and subscribes to standardized data messages.
Three rules keep it reliable:
- Keep the backbone under the length limit for your cable gauge, or voltage drop causes intermittent device dropouts
- Give every device a unique instance number, or two depth sources will fight over the same data slot
- Terminate both ends and nowhere else, or the bus reflects signals and devices vanish from the network
Best Practices for Marine Sensor Calibration
Best practices for marine sensor calibration start with one principle: calibrate in the conditions you actually sail in. A speed transducer calibrated on a flat calm day reads wrong the moment the boat heels.
Practical steps that hold up:
- Run a speed calibration leg in both directions on a known distance to cancel current
- Enter your depth offset so the sounder reads water below the keel, not below the transducer
- Recheck heading against a known bearing after any compass-safe-distance change
- Log a baseline after calibration so you can spot drift next season
Better Data at the Helm: How Integrated Systems Improve Sailing Performance and Safety
Integration improves sailing performance by putting corrected, agreed-upon data in front of the helmsperson in real time, meaning fewer numbers to reconcile and faster decisions.
Troubleshooting Integration Failures and Legacy System Trade-Offs
Most integration failures trace to four causes: addressing conflicts, firmware mismatches, cabling faults, and duplicate data sources. The difference between a two-hour fix and a two-week parts-swapping spiral is working the problem in order.
A Diagnostic Sequence That Actually Works
Start with the device list, not the wiring. Every NMEA 2000 device announces itself with a source address and instance number, and most displays and processors can show that list. If two devices claim the same instance, your display picks one and silently ignores the other; reassign the instance and the conflict usually clears without touching a cable. Then check firmware: mixed-vintage devices often run protocol versions that don't fully agree, and a display that ignores a sensor is frequently a firmware gap rather than a wiring problem.
| Symptom | Likely Cause | First Fix |
|---|---|---|
| Device disappears randomly | Missing or doubled terminator | Check both backbone ends |
| Two depth readings conflict | Duplicate instance number | Reassign one source |
| New display ignores sensor | Firmware mismatch | Update both devices |
| Data drops under load | Backbone voltage drop | Shorten run or upsize cable |
| Wind reads wrong when heeled | No heel correction | Enable in processor settings |
| Whole network dead after install | Power feed on the wrong segment | Move feed to backbone center |
The Legacy Upgrade Question, Answered With Numbers
The legacy question deserves a straight answer: a cost-benefit comparison, not a brand preference. A working 15-year-old chartplotter still shows depth and position, but it can't join a modern data bus cleanly, accept a wireless wind sensor, or feed a processor that corrects for heel and trim. Three things change when you move from a legacy cluster to an integrated network:
BG Triton Edge Sailing Processor →
- Corrected data instead of raw data. A processor that applies heel and trim correction gives you a true wind angle you can steer to. A legacy masthead unit gives you apparent wind in a tilted frame, and you do the math in your head.
- One backbone instead of proprietary cabling. Legacy systems often used brand-specific buses. Moving to NMEA 2000 means a sensor from one manufacturer can feed a display from another without a converter box.
- A path to future devices. Autopilots, AIS, and wireless wind sensors all assume a modern bus. A legacy network can't accept them without a bridge.
Mobile Integration, Weight, and Power: What Modern Systems Add
Modern systems add three things older instrument clusters can't match: phone and tablet access, less weight aloft, and lower power draw.
Mobile Integration Is a Workflow, Not a Feature
The gap between fixed helm displays and tablet or smartphone apps is where integration pays off most. At the dock, mobile access changes commissioning: the Triton Edge runs an integrated web server, so setup and calibration happen from a tablet or laptop instead of at the helm with a manual, and Garmin's GMI 40 updates software over the air through the ActiveCaptain app.
![Garmin GMI 40 Wired Sail Pack - 52mm - GMI 40 Marine Instrument; gWind Wired DST820 Transducers [010-03411-10]](https://cdn.shopify.com/s/files/1/0842/4914/9751/files/115765XL.jpg?v=1788564879)
Weight Aloft Compounds With Every Degree of Heel
Weight matters more than people expect, and the reason is leverage: every gram at the masthead sits at the end of a long lever arm, amplifying with heel and pitching in a way deck-level weight does not. Wireless wind sensors cut the mast cable entirely, and that's the real weight story. The gWind Wireless 2 eliminates running wires through masts up to 50 feet and runs on an internal solar-charged battery; the WS320 does the same for B&G systems.
Power Draw Is the Quiet Win on Long Passages
Power consumption is the quiet win, and it matters most away from shore power. Transflective LCD displays use reflected ambient light for daytime visibility, drawing less than backlight-only screens, and the Triton² display's adjustable LED backlighting extends battery capacity on long passages. A transflective display is readable in daylight with the backlight off or low, so the backlight is the biggest power consumer on the instrument circuit and you only pay for it at night.
Conclusion
The gap between a boat full of standalone gauges and a properly integrated system isn't about screen count. It's about whether your instruments correct each other's data or report in isolation. Charleston Yachting stocks the B&G, Garmin, and Raymarine systems that make that integration work, from the Triton Edge processor to complete sail packs with displays, transducers, and NMEA 2000 backbone kits in one box.
Frequently Asked Questions
What is an integrated sailing instrument system?
An integrated sailing instrument system connects wind, depth, speed, heading, and autopilot data through a shared network, typically NMEA 2000. Instead of separate gauges showing isolated readings, every display can pull from the same data bus. That means true wind angle, boatspeed, and depth corrections appear consistently across the helm display, nav station, and chartplotter, which reduces wiring and gives the crew one accurate picture of conditions.
How does NMEA 2000 improve marine electronics integration?
NMEA 2000 is a standardized data bus that lets certified devices from different manufacturers share power and data over a single backbone cable. A Triton2 display, a DST810 transducer, and a Garmin chartplotter can all communicate without proprietary converters. Certification matters: B&G Triton2 and Garmin GMI 40 instruments are both NMEA 2000-certified, so adding either to an existing network is a plug-in job rather than a rewiring project.
Is it better to have standalone or integrated marine instruments?
Standalone instruments work fine on small boats with simple needs, but integration pays off as soon as you add an autopilot, chartplotter, or multiple displays. Integrated systems share calibrated data across every screen, support autopilot steering algorithms that use true wind angle and boatspeed, and let you add sensors later without replacing the whole setup. The main trade-off is upfront cost and the need for correct network architecture.
What are the main advantages of connecting wind, depth, and speed sensors?
Connecting these sensors through one network produces corrected data that no single sensor can generate alone. Wind correction for heel and trim, boat speed calibration, and depth offset all feed into true wind calculations that improve autopilot accuracy. A system like the B&G Triton Edge Sailing Processor takes raw sensor input and delivers advanced true wind data and start line calculations to compatible displays, which sharpens both cruising decisions and race performance.
How do I choose between Garmin and B&G for a sailing instrument upgrade?
Both ecosystems are NMEA 2000-certified, so the deciding factor is usually the displays and features you want. Garmin GMI 40 sail packs pair a 4.3-inch touchscreen with gWind sensors and DST820 transducers, and integrate with Garmin BlueNet and ActiveCaptain. B&G Triton2 packs add sailing-specific features like SailSteer and WindPlot, and the Triton Edge processor handles advanced calibration. Match the system to your existing chartplotter brand when possible to simplify setup.
