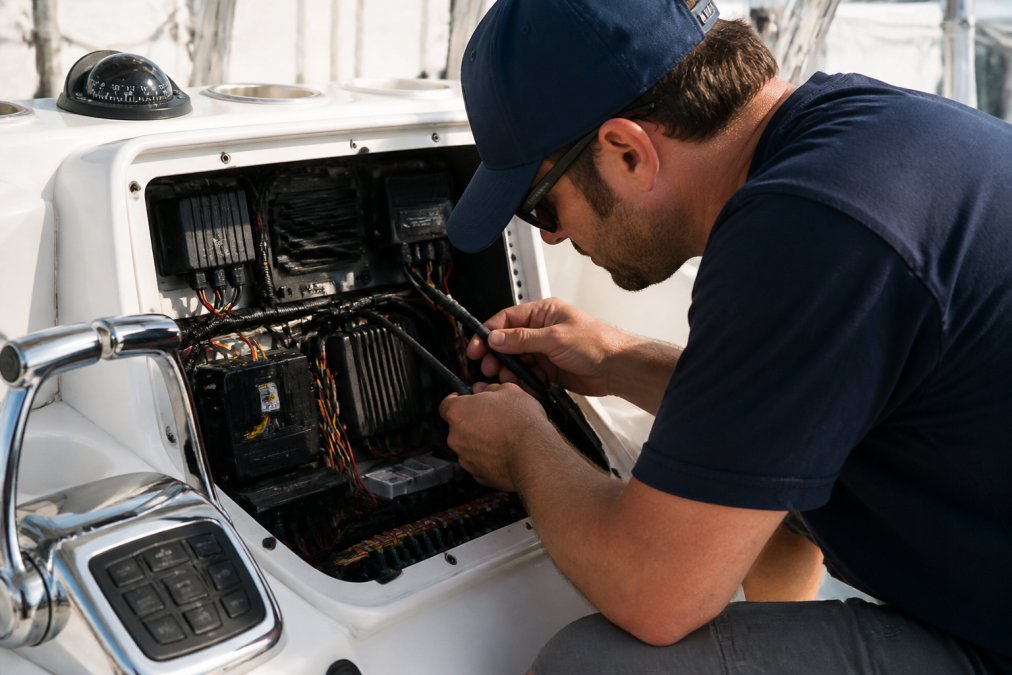

Marine Electronics Installation Tools You Actually Need

Marine electronics installation rewards preparation over ambition.

Marine electronics installation is mounting, wiring, and connecting navigation, communication, and instrumentation so every device shares power and data reliably in a wet, vibrating environment. These tools cover roughly 90% of what a first-time installer needs.

Crimping and Termination Tools

A ratcheting crimper sized for insulated and heat-shrink terminals is the single most important purchase. Cheap crimpers flatten terminals instead of forming them, and a flattened crimp fails at the worst moment.

• Ratcheting crimper with interchangeable dies
• Wire strippers that don't nick the conductor
• Flush cutters for trimming cable ties
• Heat gun rated for adhesive-lined tubing

Testing and Safety Gear

A digital multimeter with a continuity beeper and DC voltage range is non-negotiable, you'll verify polarity, confirm grounds, and chase voltage drop before powering up. Add a circuit tester, headlamp, and fire extinguisher within arm's reach; marine work happens in cramped lockers.

NMEA 2000 Network Installation: Building Your Data Backbone

NMEA 2000 network installation follows a strict topology: one linear backbone, two terminators, one power feed, and drop cables to each device. Break those rules and the bus misbehaves in ways that look like device failures.

Backbone Layout and Terminator Placement

Run the backbone as a single line from bow to stern. Terminators go at the two physical ends and nowhere else, a third terminator, or a backbone that loops back on itself, corrupts the data bus.

Power Feed and Voltage Drop Checks

The power feed connects to the backbone at one point, ideally near the center. Check voltage at the far end with everything running, if it sags noticeably below the source, your drop cables are too long or too thin.

• Keep total backbone length within the standard's limit for your cable gauge
• Feed power through a fused connection, never directly from the battery
• Verify each drop cable is under the maximum length for its device

Marine Wiring Best Practices for Reliable Connections

Marine wiring best practices come down to three things: the right conductor, termination, and routing. Skip any one and the connection fails within a season or two.

Tinned Copper Wire and Heat-Shrink Connectors

Use tinned copper wire for every run. The tin coating resists the corrosion plain copper develops in salt air and keeps strands from wicking moisture up the cable.

Cable Routing and Interference Reduction

Route data cables away from power cables, ideally on opposite sides of a bulkhead. Where they must cross, cross at 90 degrees. Keep runs away from the engine, alternator, and high-current switching gear.

• Secure cables every 30-45 centimeters with UV-rated ties
• Leave a service loop at each device so future work doesn't strain the connector
• Use grommets or bulkhead fittings wherever cable passes through structure
• Label both ends of every run before you close up the panels

Waterproofing Marine Electrical Connections That Last

Waterproofing marine electrical connections means sealing the conductor joint and the connector housing, then managing water so it never reaches either. Heat-shrink handles the joint; the housing needs dielectric grease and, where appropriate, marine sealant.

Why Marine Connections Fail: The Three Mechanisms

What kills a connection:

• Corrosion. Salt-laden moisture oxidizes bare copper into green or black compounds that increase resistance. Tinned copper slows this; sealed terminations stop it.
• Electrolytic corrosion. Two dissimilar metals in an electrolyte with a voltage potential cause the less noble metal to give up ions. Mixing aluminum and stainless hardware, or using the wrong terminal plating, causes failures that look like bad crimps.
• Vibration fatigue. A crimp that flexes work-hardens the strands and cracks. Strain relief is not optional on a boat.

The Sealed Crimp: Adhesive-Lined Heat-Shrink Done Right

Adhesive-lined heat-shrink tubing is the standard for marine terminations: the inner adhesive melts, flows, and cures into a seal as the tubing shrinks. Plain vinyl just covers.

A correct sealed crimp:

1. Strip the wire to the depth of the terminal barrel, without nicking the conductor.
2. Crimp the barrel with the correct die, then crimp the insulation support separately.
3. Slide the adhesive-lined tubing over the joint so it overlaps the insulation on both sides.
4. Heat evenly with a heat gun until the tubing shrinks fully and a small bead of adhesive appears at each end. That bead is your proof of seal.

Buy adhesive-lined heat-shrink terminals, not the plain vinyl kind. The adhesive melts and seals the joint as it shrinks, which is the difference between a connection that survives a season and one that survives a decade.

Dielectric Grease: Where It Goes and Where It Does Not

Dielectric grease is a silicone-based, non-conductive compound that displaces moisture and blocks oxygen from metal contacts. It doesn't conduct, so a light film on the pins is safe, metal-to-metal contact still happens through the film.

• Apply a thin film to the metal contacts before mating any connector.
• A common mistake is slathering grease on the outside of the housing instead of the contacts inside. The outside does nothing; the inside is what corrodes.
• Do not pack grease into a connector so heavily that it prevents full seating.
• Re-apply at annual service, especially on connectors in bilges, wet lockers, and exposed consoles.

Sealing Penetrations: Through-Bulkhead and Through-Hull

Every cable passing through structure is a potential leak path. The fix depends on location:

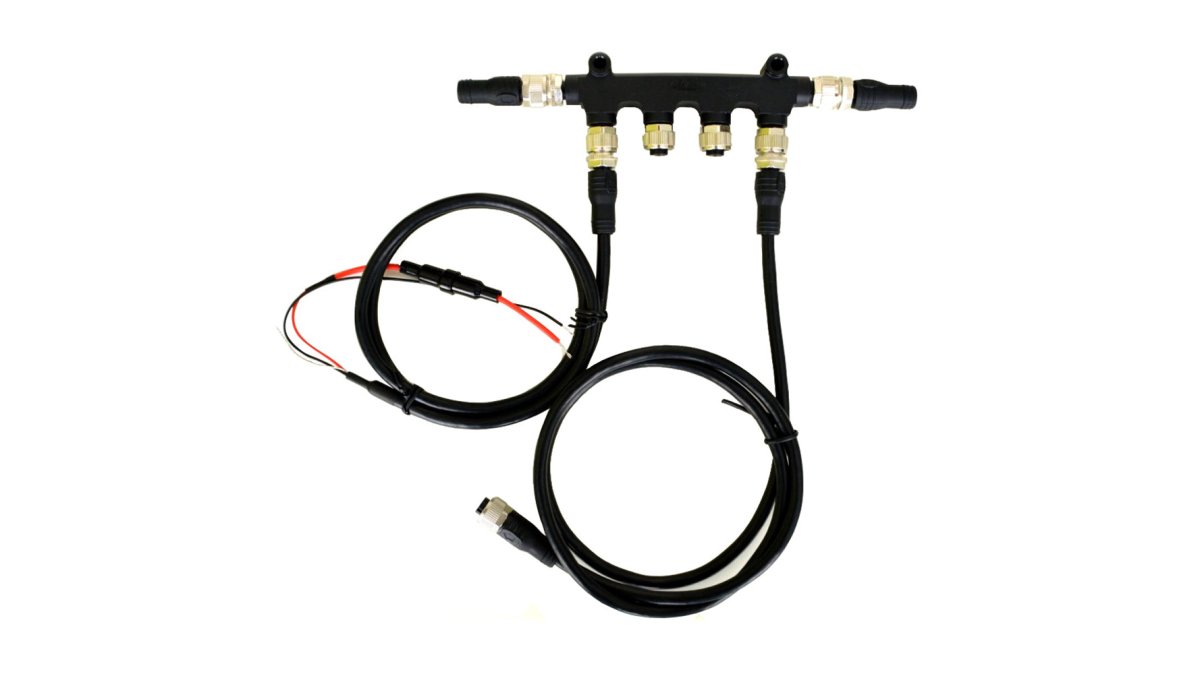

Digital Yacht NMEA 2000 Starter Cable →

• Above the waterline: Use a marine-grade sealant (polyurethane or polysulfide) bedded around a bulkhead fitting or grommet. Silicone peels away from gelcoat over time and should be avoided.
• Below the waterline: Use only sealants rated for below-waterline use, and bed the fitting per the manufacturer's instructions. A mistake here sinks the boat, if unsure, hire a professional.
• Cable glands: Where cable enters a device housing, use a proper cable gland or strain relief, not a blob of sealant. The gland grips the jacket and seals the entry; sealant alone does not provide strain relief.

Drip Loops and Water Management

Even a perfectly sealed connector fails if water pools on it. A drip loop, a downward loop just before the connector or housing, forces water to run off the low point instead of wicking in.

• Form a drip loop at every device entry point in an exposed or wet location.
• Route cables so water cannot travel along the jacket into a housing.
• Avoid leaving a connector at the bottom of a vertical run where water naturally collects.

Every connection that lives in a wet locker, bilge, or exposed console needs four things: a sealed adhesive-lined crimp, dielectric grease on the contacts, a drip loop in the cable, and strain relief so the joint never flexes. Miss any one and the connection will fail, usually at the worst possible moment.

Troubleshooting Common Marine Electronics Installation Errors

Troubleshooting marine electronics installation errors starts with the simplest explanation: a bad ground, reversed polarity, or a missing terminator. Check those before suspecting a device.

The most frequent problems we hear about:

Symptom	Likely Cause	Fix
Device not seen on network	Missing or extra terminator	Confirm exactly two terminators at the backbone ends
Intermittent dropouts	Voltage drop or noise	Recheck power feed and separate data from power cables
Corroded connector	No dielectric grease	Clean contacts, apply grease, reseal housing
Device reboots under load	Undersized wire	Replace with heavier-gauge tinned copper
No GPS fix	Transducer or antenna placement	Move away from metal and other antennas

Safety and Regulatory Compliance for DIY Installs

Safety and regulatory compliance for a DIY install isn't paperwork, it's the rules that keep your boat from catching fire, your electronics from frying, and your insurance claim from being denied.

The Standards That Actually Apply to You

Two bodies set the expectations for recreational vessel electrical work:

• The American Boat and Yacht Council standards for electrical systems publishes the technical standards (E-11 for AC and DC electrical systems, E-10 for storage batteries, A-31 for battery chargers and inverters) that surveyors, insurers, and marine electricians reference daily. ABYC standards are voluntary for recreational boats, but they are the de facto benchmark, a surveyor who finds non-compliant wiring will flag it, and an insurer can use it to deny a claim.
• The US Coast Guard boating safety resources enforces a narrower set of federal requirements (fuel systems, ventilation, backfire flame arrestors, and certain electrical items on boats with inboard engines). The USCG does not inspect your NMEA 2000 backbone, but it does care about anything that touches the fuel system or could ignite vapor.

Circuit Protection: Size the Fuse to the Wire, Not the Device

The most common compliance mistake beginners make is installing a fuse rated for the device instead of the conductor. A fuse protects the wire from overheating, so its rating must not exceed the ampacity of the smallest conductor in that circuit. Properly sizing these protective components becomes even more critical when installing leisure batteries that demand higher current capacity and robust circuit management.

A practical workflow:

1. Identify the wire gauge you ran (for example, 16 AWG tinned copper).
2. Look up its ampacity for the bundle size and ambient temperature, ABYC E-11 tables give you this.
3. Install a fuse or breaker at or below that ampacity, as close to the power source as practical.
4. Confirm the device's own inline fuse (if it has one) is downstream of the circuit protection, not a substitute for it.

Grounding, Bonding, and the DC Negative Question

On most recreational boats, the DC negative is bonded to the engine block and often to a common ground point. Beginners assume "ground" means the same thing everywhere, it doesn't. A poor or missing ground is the number-one cause of intermittent, hard-to-diagnose faults.

• Keep DC negative returns short and direct to a common bus.
• Do not use the hull, rails, or through-hulls as a current-carrying conductor.
• If you add a device that has its own ground lug, bond it to the vessel's common ground per the manufacturer's instructions, not to the nearest convenient bolt.

Fuel, Vapor, and Ignition-Protected Spaces

Any electrical connection inside a compartment that can accumulate gasoline vapor must be ignition-protected, the device, switch, and connector rated not to spark under normal operation. In practice:

• Do not run new circuits through fuel tank compartments or engine spaces unless the components are rated for it.
• Keep all connections out of spaces you cannot inspect.
• Use sealed, ignition-protected components near the engine, and route cables away from exhaust and fuel lines.

A fuse protects the wire, not the device. If you size the fuse to the device's draw and the wire is undersized, the wire overheats before the fuse blows. Match the fuse to the conductor's ampacity first, then confirm the device is happy with that circuit.

A Beginner's Compliance Checklist

Before you close up the panels, run through this:

• Every positive circuit has a fuse or breaker sized to the wire.
• Circuit protection sits as close to the source as practical.
• All connections are in inspectable, non-vapor spaces, or are ignition-protected.
• DC negative returns go to a common bus, not the hull.
• Wire is tinned copper, terminated with adhesive-lined heat-shrink.
• Manufacturer instructions for every device are on board and followed.
• Anything touching fuel, engine, or through-hulls was done by a professional.

Following these rules doesn't just satisfy a surveyor, it's the difference between a network that works for a decade and one that strands you offshore.

Frequently Asked Questions

What tools do I need to install marine electronics?

You need a ratcheting crimper for heat-shrink connectors, a wire stripper, a multimeter for voltage and continuity checks, and a heat gun for sealing connections. Add a torque wrench for mounting hardware and a fish tape for cable routing through bulkheads. A basic kit covers most marine electronics installation jobs without professional-grade expense.

How do I prevent electrical interference in marine electronics?

Route power cables away from antenna and transducer cables, and cross other wiring at 90-degree angles instead of running parallel. Use shielded cable where the manufacturer specifies it, and keep the NMEA 2000 network backbone separated from high-current feeds. A multimeter check for ground loops before powering up catches most interference problems early.

Should I use marine-grade wire for my boat electronics?

Yes. Tinned copper wire resists corrosion from moisture and salt air far better than standard copper. Match the gauge to the circuit's amperage and length to avoid voltage drop. Marine-grade wire costs more upfront, but it prevents the intermittent faults and re-wiring that come from corroded conductors.

Is it hard to install a marine GPS or fish finder?

For a single unit, no. Most installations involve mounting the display, running a power cable to a fuse block, and connecting a transducer or NMEA 2000 drop cable. The tricky parts are transducer placement for clean sonar readings and sealing every connection against water. A starter NMEA 2000 kit simplifies the network side considerably.
