Last Updated: September 13, 2026

Quick Comparison: Top Marine Autopilot Systems for Sailboats

The right marine autopilot for a sailboat depends on three hard numbers: your boat's displacement, your steering type, and how far offshore you sail. This guide from Charleston Yachting breaks down the systems we sell most often to sailors upgrading from a tired wheel or tiller pilot that can no longer hold a course in a seaway. Reliability in these conditions often requires a broader understanding of how marine navigation systems integrate with your vessel's existing sensors to maintain precision during both coastal passages and specialized offshore pursuits.

Here's the short version before the detail.

A common mistake is buying on price alone. The drive unit, not the control head, decides whether a marine autopilot survives a windy beat offshore.

How We Evaluated the Best Marine Autopilot for Sailboats

We judged each system on four criteria: drive type and torque, displacement rating, integration with existing electronics, and calibration effort. A marine autopilot is only as good as its actuator, so a below-deck linear drive almost always outperforms a wheel-mounted unit on the same hull.

Displacement ratings are conservative. Pushing a boat to the published maximum in rough conditions wears the drive quickly, so leave headroom.

We also weighed power consumption: a heavy draw drains a cruising bank overnight, and voltage drop on undersized wiring is a common cause of erratic steering.

Garmin Reactor 40 Sail Corepack: Best for Precision and Integration

The Garmin Reactor 40 Sail Corepack is the most precise system here, and the first sailboat autopilot to use a brushless linear actuator with a built-in ECU, finer rudder awareness and less wear than a brushed drive.

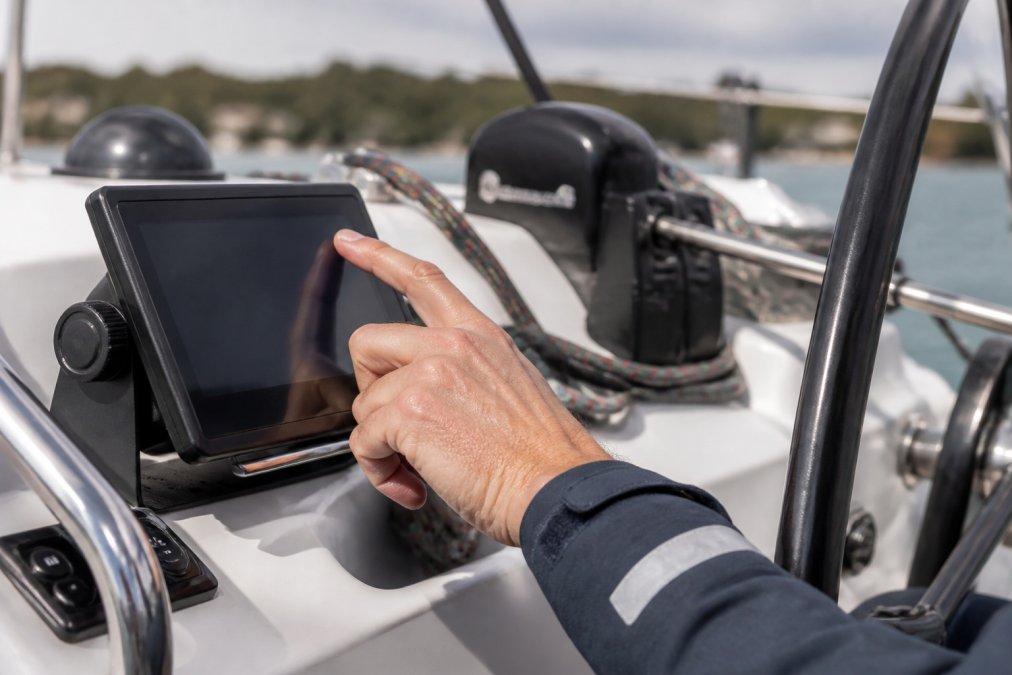

The SmartDrive actuator suits sailboats and catamarans up to 45 feet and 33,000 lbs displacement, with 12 inches of stroke and adjustable thrust (garmin.com). The 5-inch GHC 50 touchscreen shares settings with Garmin MFDs, so a Garmin helm integrates without a second control philosophy.

Where it falls short: at $4,999.99 it's the priciest option here, and the below-deck install is a bigger job than bolting a wheel pilot to the pedestal.

Raymarine EV-100 Tiller and Wheel: Best Value for Coastal Cruisers

The Raymarine EV-100 is the value pick for coastal cruising, sold as a complete autopilot-in-a-box at $2,199.99. The tiller version handles boats up to 13,200 lbs; the wheel version fits most sailboat wheels and handles up to 16,500 lbs. Both run on 12V DC.

Raymarine's Evolution Ai means no calibration is required. The 9-axis EV sensor core monitors heading, pitch, roll, and yaw, and mounts above or below deck. The p70s control head supports Auto, Wind Vane, Track, and Pattern modes.

The honest limitation: both units cap out at coastal-sized boats. If your displacement climbs past the rating, step up to the EV-200.

Raymarine EV-200 and EV-400: Best for Offshore Passagemaking

For offshore passagemaking, compare the EV-200 and EV-400. The EV-200 Sail at $2,499.99 works with any Type 1 linear or rotary drive and runs on 12V or 24V DC. The EV-400 Sail at $2,799.99 delivers a heavy-duty 30-amp output for Type 2 or Type 3 drives and ZF Sail Pod systems.

Both use the same EV-1 sensor core, sealed to IPX6 and IPX7 standards and accurate to within 2 degrees. Neither includes a drive unit, so budget for that separately.

Simrad TP32 and A2004: Best for Commercial and Tiller-Steered Boats

The Simrad TP32 Tillerpilot is the budget entry at $935.00, suited to sailboats up to 37 feet. It draws little power, runs quietly, and installs with plug-and-play SimNet connectivity, a realistic DIY job for a weekend sailor.

At the other end, the Simrad A2004 Pack at $3,989.00 and AP70 MK2 Pack at $4,514.00 target professional mariners. The A2004 pairs a rotary dial with mode keys for wet or gloved hands, plus Continuum steering and No Drift mode. The AP70 MK2 carries a wheelmark for SOLAS vessels and supports up to six rudders or thrusters.

These are overkill for a weekend cruiser. They're built for workboats and commercial operators who need redundancy.

Tiller vs Wheel Autopilot: Which Steering Type Fits Your Boat?

Tiller pilots mount directly to the tiller and are cheaper, lighter, and easier to fit. Wheel pilots drive the wheel rim through a belt or ring and suit pedestal-steered boats. Below-deck linear drives connect to the rudder quadrant and deliver the best steering torque with the least weather helm correction effort.

The deciding factor is your existing steering. A tiller-steered boat can't take a wheel pilot, and a below-deck drive needs access to the rudder stock.

• Tiller pilot: boats under roughly 37 ft, lowest cost, simplest install
• Wheel pilot: pedestal-steered boats, moderate cost, no quadrant access needed
• Below-deck linear or hydraulic drive: larger displacement, best performance, professional install

Sailboat Autopilot Installation Guide: DIY vs Professional

Installation is where most autopilot projects stall. The honest split: tiller and wheel pilots are genuine DIY jobs, below-deck linear and hydraulic drives are not, and retrofitting a legacy pilot onto a modern NMEA 2000 backbone is its own category most guides skip.

What each install actually involves

Tiller pilot. The unit clamps into a socket and pin assembly on the tiller and a bracket on the coaming. You drill four to six holes, seal them, run a 12V DC lead to a breaker, and connect to the seatalk or NMEA 2000 drop. A careful owner finishes in two to four hours.

Wheel pilot. The drive ring or belt mounts to the wheel and the motor housing bolts to the pedestal. The fiddly part is belt tension and wheel clearance, too tight and the pilot fights the helm, too loose and it slips in a seaway. Budget three to five hours, plus sensor cable routing to a magnetically clean location.

Below-deck linear or hydraulic drive. A different job: mounting an actuator to the rudder quadrant or tiller arm, aligning it to the rudder stock, installing a rudder reference unit, running heavy-gauge power cable from the course computer, and commissioning the control head. On a 35- to 45-foot boat, a yard typically books one to two days of mechanical labor plus a half day for sea trial and calibration.

The retrofit problem nobody writes about

If your boat was built before roughly 2005, the pilot you're replacing probably speaks a proprietary protocol, older Raymarine SeaTalk 1, Simrad SimNet, or a bare NMEA 0183 pair. Modern course computers expect NMEA 2000. You have three realistic paths:

• Protocol converter. A SeaTalk 1 to SeaTalk ng or NMEA 0183 to NMEA 2000 converter bridges the old backbone to the new one. Cheapest option, but you inherit whatever data the legacy instruments can actually produce.
• Partial backbone replacement. Run a new NMEA 2000 backbone with its own power drop and terminators, then feed the autopilot from it while leaving legacy instruments on their own network. This is the most common approach on 1980s and 1990s hulls.
• Full electronics refresh. If the wind instrument, depth sounder, and chartplotter are all original, the pilot is the excuse to replace the lot. More expensive, but you stop chasing adapter cables.

Two details trip up retrofits. NMEA 2000 requires a properly terminated backbone with a dedicated power insertion point, daisy-chaining drops off a single tee causes intermittent heading data. And the rudder reference unit on a below-deck drive needs a clean mechanical linkage to the rudder stock; on older boats with worn steering, that linkage is often the real project.

DIY vs professional: the cost-benefit

A tiller or wheel pilot is within reach of an owner with basic 12V DC wiring experience; the risk is low and the manual is usually adequate.

A below-deck install is where the math changes. Mechanical alignment, rudder reference geometry, and sea-trial calibration are what go wrong, and a misaligned actuator can damage the steering system. Paying for a professional install is usually cheaper than repairing a botched one.

NMEA 2000 backbone and termination guidance

Charleston Yachting ships same-day so a project doesn't stall waiting on a missing T-connector or terminator.

Marine Autopilot Maintenance Tips

Most autopilot failures trace back to a short list of causes, and the ones that strand you offshore differ from the ones that annoy you at the dock. Knowing which is which, and what you can fix at sea, separates a pilot you trust on passage from one you babysit.

The failure modes that actually happen

Corroded connections. The most common cause of erratic steering. Salt air attacks the pins in every NMEA 2000 tee and the power lugs at the course computer. Inspect annually and use dielectric grease on every reachable connector.

Worn drive belt or clutch. Wheel pilots glaze their belts; below-deck drives wear the clutch plates. Symptoms are slipping under load, a pilot that holds a course in flat water but wanders in a seaway, or a drive that runs hot. Belt and clutch kits are the two spares worth carrying.

Heading sensor drift or interference. A fluxgate compass or solid-state sensor core that has drifted, or sits too close to a speaker, steel tool, or heavy current-carrying cable, produces heading errors no calibration can fix. Relocate the sensor before replacing it.

Voltage drop under load. Undersized cable or a corroded breaker causes the pilot to steer lazily or drop out when the drive draws current. Measure voltage at the course computer while the drive is running, not at rest.

Rudder reference failure. On below-deck drives, a worn linkage or a failed rudder reference unit makes the pilot hunt or refuse to engage. This is a mechanical problem, not an electronic one.

What you can actually fix at sea

This is the part long-distance cruisers care about, and the part 'best of' lists ignore. Field-repairability varies enormously by drive type:

• Tiller pilots. Largely user-serviceable. Carry a spare drive belt, a spare socket pin, and the tools to swap them. Most failures are mechanical and fixable on deck.
• Wheel pilots. Belt and clutch are replaceable at sea with basic hand tools. Motor or control board failures are not.
• Below-deck linear drives. The actuator itself is not a field-repair item. What you can do is carry a spare course computer, a spare rudder reference unit, and the connectors to bypass a failed component. Many cruisers also carry a complete spare tiller pilot as a backup steering system for exactly this reason.
• Hydraulic drives. Field service is limited to fluid checks and fitting leaks. A failed pump or ram means hand-steering until you reach a port.

Wind vane vs. electronic autopilot: the alternative worth considering

If your cruising is mostly long-distance passagemaking, a wind vane is a legitimate alternative to an electronic pilot, and most guides never mention it. A wind vane steers to apparent wind using no electrical power at all, a real advantage on a boat with a modest battery bank and no generator. It also keeps working when your electronics fail, which is why many offshore sailors carry both.

The trade-offs are real. A wind vane cannot steer to a GPS track or hold a compass course in light, fluky air, and it needs a mechanical linkage to the rudder that adds weight and drag to the transom. It also does nothing for you in a marina or on a coastal day sail.

The practical pattern among long-distance cruisers is a below-deck electronic pilot for coastal work and motoring, plus a wind vane for trade-wind passages. If your sailing is weekend coastal work, an electronic pilot alone is the right answer. If you're planning ocean crossings, the wind vane question is worth answering before you spend on a premium below-deck system.

Offshore steering redundancy and wind vane self-steering overview

Choosing a marine autopilot comes down to matching the drive type and displacement rating to how you actually sail, not chasing the biggest spec sheet. Charleston Yachting stocks the Garmin Reactor 40, the Raymarine EV series, and the Simrad range, with premium rigging and hardware from the brands sailors trust and same-day shipping on the components that keep a project moving. Shop All and get the right pilot for your boat.
