Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]
Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]

Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]

Series 5 Flat Base/Alum Cheek/Delrin SheaveDelrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area. Specifications: Sheave Diameter 2" (51 mm) Max. Line 7/16" (11 mm) Length 3-5/8" (92 mm) Width 2-7/32" (57 mm) Height 7/8" (22 mm) Fasteners (4) #10...
Vendor: Schaefer Marine
SKU: CWR-74716
Availability: 1 In Stock
Product Type: Blocks
$112.10
$0.00
$112.10
Hurry up! only 1 left
Subtotal: $112.10
Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]

Schaefer Marine

Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]

$0.00 $112.10
Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]

Schaefer Marine

Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]

$0.00 $112.10

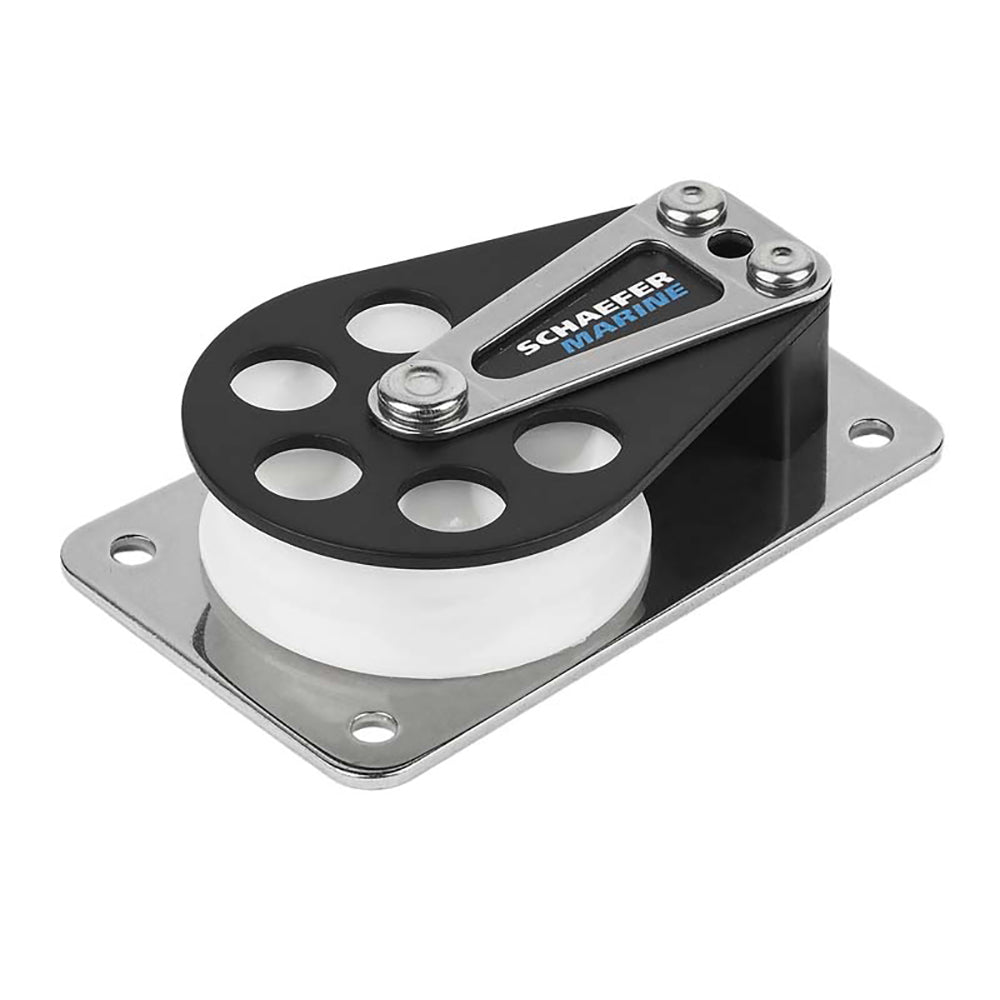

Series 5 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Diameter 2" (51 mm)
  • Max. Line 7/16" (11 mm)
  • Length 3-5/8" (92 mm)
  • Width 2-7/32" (57 mm)
  • Height 7/8" (22 mm)
  • Fasteners (4) #10 RH (5 mm)
  • C/C 3" (76 mm)
  • SWL 1750 lbs. (795 kg)
  • Weight 5.9 oz. (167g)
  • Max. Line 7/16" (11mm)
