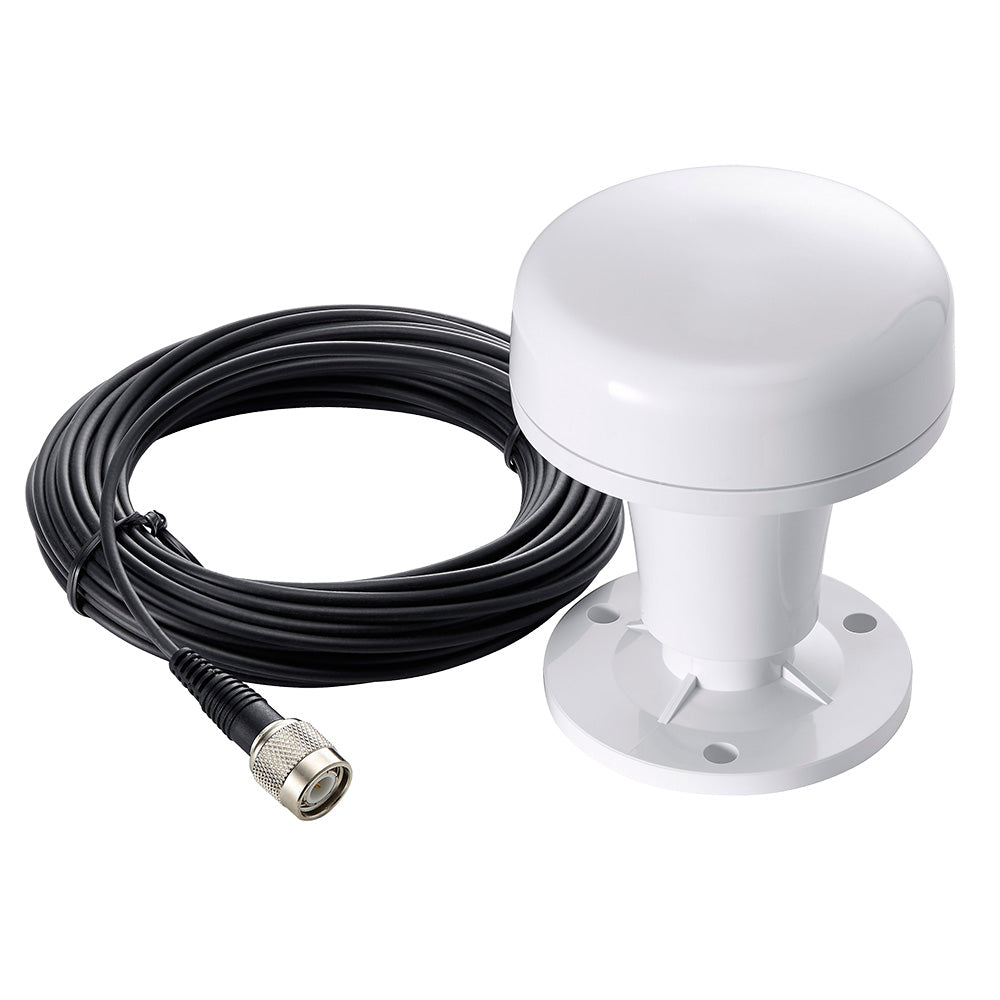

GA-22 High Performance GNSS Antenna

GA-22 is a GNSS antenna designed for AMEC AIS products. It can also be a replacement for other navigational devices.

The GNSS antenna is engineered to meet the rigorous demands of the marine environment. It is tested with AMEC AIS transponders and has passed all relevant environmental tests. Its UV-resistant enclosure is IP67 waterproof. The built-in high-performance LNA (low-noise amplifier) ensures excellent sensitivity.

GA-22 has 2 mounting options: pole mount and base mount. It has a 10-meter RG174 cable that facilitates routing and installation.

Features:

• Built-in LNA (Low Noise Amplifier)
• Compliant with IEC 60945
• GNSS support: GPS, GLONASS, Galileo, and Beidou
• Supplied with integral 10M RG-174 cable and TNC connector
• IP67 enclosure
